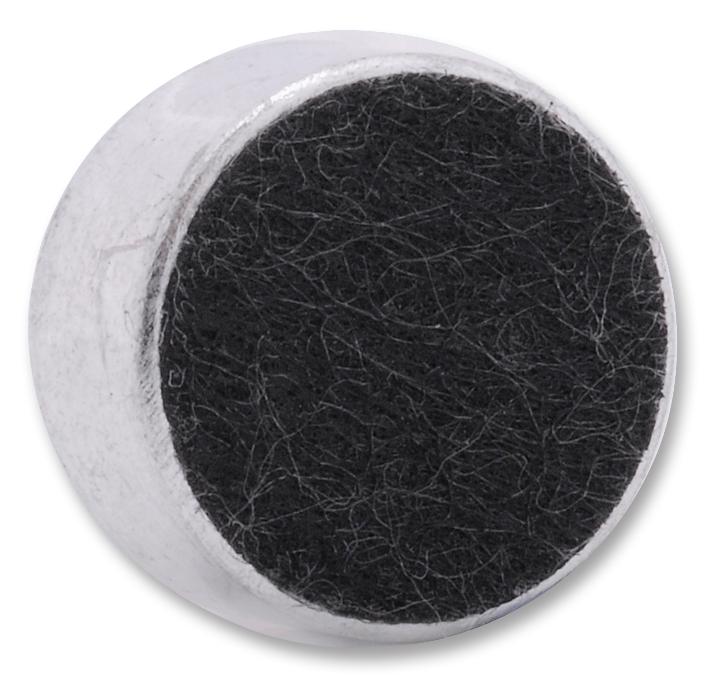

MULTICOMP PRO ABM712RC Noise-Canceling Microphone
The Microphone with solder pad is a noise-canceling device designed for audio applications requiring clear signal transmission. It operates with a standard voltage of 2V and a maximum of 10V, consuming only 0.5mA of current. Its frequency response spans from 100 to 10,000Hz, and it features an impedance of less than 2.2KOQ at 1KHz 1Pa. The microphone provides a signal-to-noise ratio exceeding 58dB, enabling high-quality audio capture in compact industrial or consumer electronics setups. Its RoHS compliance ensures environmentally safe usage.
MULTICOMP PRO ABM712RC Noise-Canceling Microphone Specifications:
- Directivity: Noise cancelling
- Standard operating voltage: 2V
- Maximum operating voltage: 10V
- Maximum current consumption: 0.5mA
- Output impedance: < 2.2KOQ at 1KHz 1Pa
- Frequency response: 100 to 10,000Hz
- Sensitivity: 1-46 +3dB at 1KHz, 0dB = 1V/Pa
- Signal to noise ratio: > 58dB at 1KHz 1Pa
- Terminal: Solder pad
- Dimensions: 5.0 +0.2 mm
- Part number: ABM-712-RC
- RoHS compliant
Buy the Multicomp ABM712RC – Reliable Noise-Canceling Microphone for Industrial Applications
Purchase the Multicomp ABM712RC noise-canceling microphone online today for reliable audio capture in industrial and consumer electronics. Featuring a wide frequency response of 100 to 10,000Hz, low impedance, and a signal-to-noise ratio exceeding 58dB, this compact device ensures clear sound quality. Operating at 2V with a maximum of 10V and consuming only 0.5mA, it's ideal for environments requiring high audio fidelity. RoHS compliant, it provides eco-friendly use alongside durable solder pad terminals for easy integration in your projects.
Order your Multicomp ABM712RC quality solder pad microphone today and enhance your audio solutions with dependable noise-canceling performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ABM712RC?
You can click on the BUY or RFQ button to purchase ABM712RC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ABM712RC?
You can download the ABM712RC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ABM712RC?
MULTICOMP PRO
