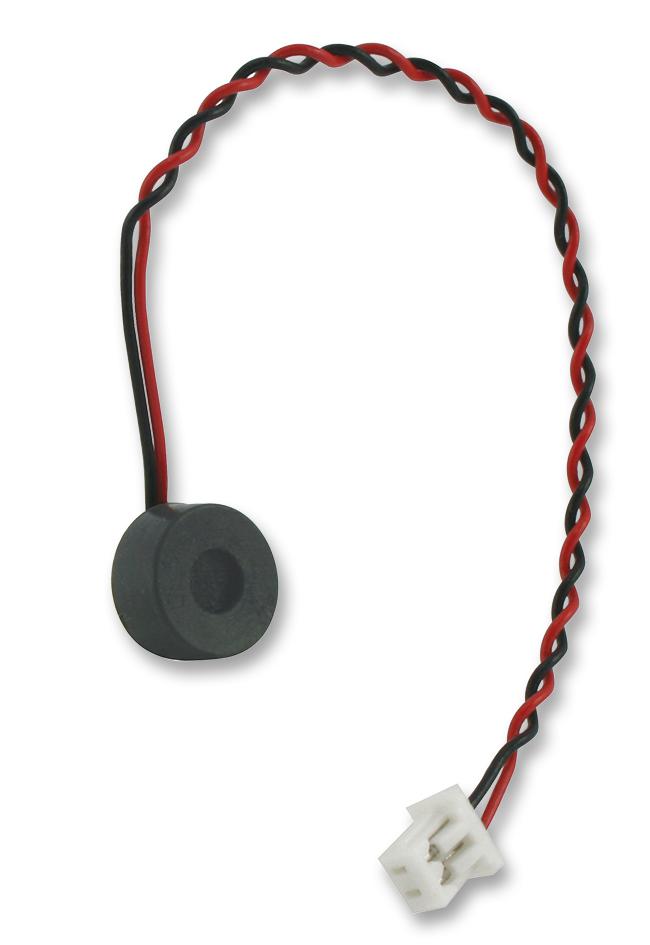

MULTICOMP-PRO ABM717RC Omni-directional condenser microphone
The omni-directional condenser microphone offers reliable, high-quality sound pickup with a frequency response of 50 to 16,000Hz and a sensitivity of -38 to 43dB. It operates at a standard voltage of 2.0V, with a maximum of 10V, and consumes only 0.5mA current. Its compact size (16.0 x 2.7mm) and wire terminal make it suitable for various audio applications, ensuring clear audio capture with a signal-to-noise ratio of 60dB. RoHS compliant, it is ideal for professional and consumer sound recording needs.
MULTICOMP-PRO ABM717RC Omni-directional condenser microphone Specifications:
- Directivity: Omni Directional
- Standard Operating Voltage: 2.0V
- Max. Operating Voltage: 10V
- Max. Current Consumption: 0.5mA
- Output Impedance: 2.2kΩ at 1kHz 1Pa
- Frequency Response: 50 to 16,000Hz
- Sensitivity: -38 to 43dB (@ 1kHz, 1V/Pa)
- Signal to Noise Ratio: 60dB (F=1kHz, 1Pa, A weighted)
- Storage Temperature: -25°C to +70°C
- Operating Temperature: -20°C to +60°C
- Dimensions: 16.0 x 2.7mm
- Terminal Type: Wire
Buy the Premier Series Microphone: Omni Directional Condenser - ABM717RC
Enhance your audio setup with the omni-directional condenser microphone offering wide frequency response of 50 to 16,000Hz, low power consumption, and high sensitivity. Its compact size of 16.0 x 2.7mm and wire terminal make installation easy for various applications including professional sound recording, broadcasting, and environmental monitoring. RoHS compliant for environmentally conscious projects, this microphone provides clear, accurate sound pickup with a signal-to-noise ratio of 60dB. Reliable and versatile, it is your ideal choice for high-quality audio capture.
Get Premier Series ABM717RC microphone today—built for precision and long-lasting durability in professional sound recording.
