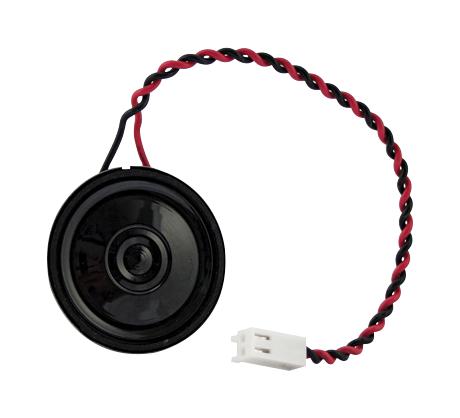

MULTICOMP-PRO ABS222150RC Audio Speaker
This speaker features 150mm leads with a connector, designed for clear audio output with a resonant frequency of 550Hz. The cone is made from durable Mylar, housed in a metallic structure, and uses Nd-Fe-B magnet material for robust magnetic performance. It has a rated impedance of 180Ω (±15%), nominal power of 1W, maximum power of 1.2W, and a frequency response up to 11,000Hz. Operating temperature ranges from -20°C to +60°C, with a storage range of -30°C to +60°C. Weighing approximately 8.25g, it is RoHS compliant and suitable for various audio applications.
MULTICOMP-PRO ABS222150RC Audio Speaker Specifications:
- Rated Impedance: 180Ω ±15%
- Rated Power (Nominal): 1W
- Rated Power (Maximum): 1.2W
- Resonant Frequency: 550Hz +20%
- Rated Frequency Range: 20Hz to 11,000Hz
- Sound Output Level at 1W/1m: 85dB +3
- Cone Material: Clear Mylar
- Housing Material: Metal
- Magnet Material: Nd-Fe-B
- Magnet Size: 12.5mm x 1.5mm
- Wire Gauge: 24AWG
- Operating Temperature Range: -20°C to +60°C
- Storage Temperature Range: -30°C to +60°C
- Weight: 8.25g
- RoHS Compliant
Buy the Buy Multicomp Pro Speaker Part Number ABS222150RC Online
Order the Multicomp Pro speaker with 150mm leads and connector today for seamless integration into your audio projects. This high-quality speaker offers a rated impedance of 180Ω, 1W nominal power, and a resonant frequency of 550Hz, making it ideal for professional and hobbyist applications. Constructed with Mylar cone and metal housing, it ensures durability and clear sound output over a broad frequency range up to 11,000Hz. Compact and lightweight at 8.25g, it is RoHS compliant, providing excellent performance in various temperature conditions.
Get Multicomp Pro ABS222150RC today—designed for reliable audio performance and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO ABS222150RC?
You can click on the BUY or RFQ button to purchase ABS222150RC from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part ABS222150RC?
You can download the ABS222150RC datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of ABS222150RC?
MULTICOMP-PRO
