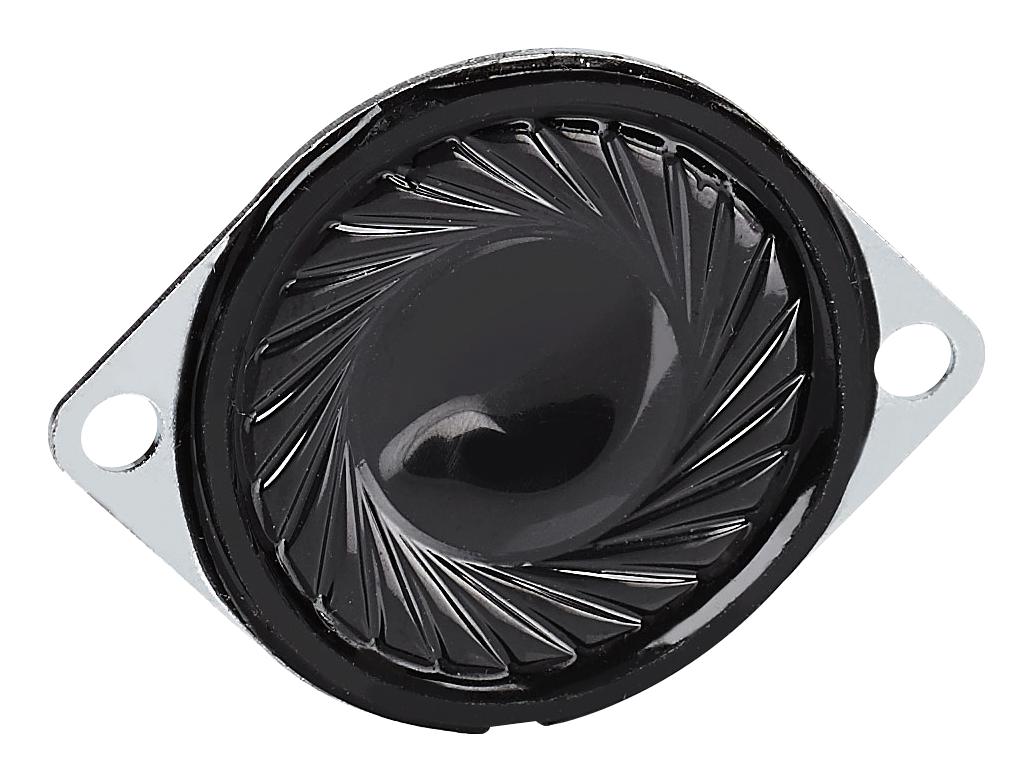

MULTICOMP PRO ABS233RC Mylar Speaker
This low-profile, flange-mountable Mylar speaker features a 28mm diameter, 1W power rating, and a resonant frequency of approximately 1750Hz. Constructed with Nd-Fe-B magnet and Mylar cone material, it offers a sound pressure level of 92dB at 0.1W/0.1m. Operating within -20°C to +60°C, it is RoHS compliant and ideal for compact audio applications requiring reliable performance in tight spaces. Lightweight at 25.2g, it is suitable for various electronic devices and industrial systems requiring precise sound emission.
MULTICOMP PRO ABS233RC Mylar Speaker Specifications:
- Cone Material: Mylar
- Rated Impedance: 58 Ohms ±15%
- Nominal Power: 0.5W
- Maximum Power: 1W
- Resonant Frequency: 1750Hz ±150Hz
- Rated Frequency Range: 7kHz
- Sound Pressure Level at 0.1W/0.1m: 92dB ±3dB
- Magnet Material: Nd-Fe-B
- Magnet Size: 12.5mm x 1.5mm
- Dimensions: 28mm diameter, lightweight at 25.2g
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -30°C to +60°C
Buy the Multicomp 233-RC – Reliable Mylar Audio Speaker for Industrial Applications
Purchase the Mylar speaker now for high-quality audio in space-constrained environments. Its 28mm diameter, 1W power rating, and wide temperature range ensure dependable performance in industrial and electronic applications. Features include flange mounting, RoHS compliance, and lightweight design, making it suitable for various projects requiring clear sound transmission. Reliable and durable, this speaker is designed for professionals seeking quality sound components for manufacturing, automation, and device integration. Elevate your product performance with this trusted audio solution today.
Buy Multicomp 233-RC now and experience reliable sound output in compact electronic and industrial devices.
