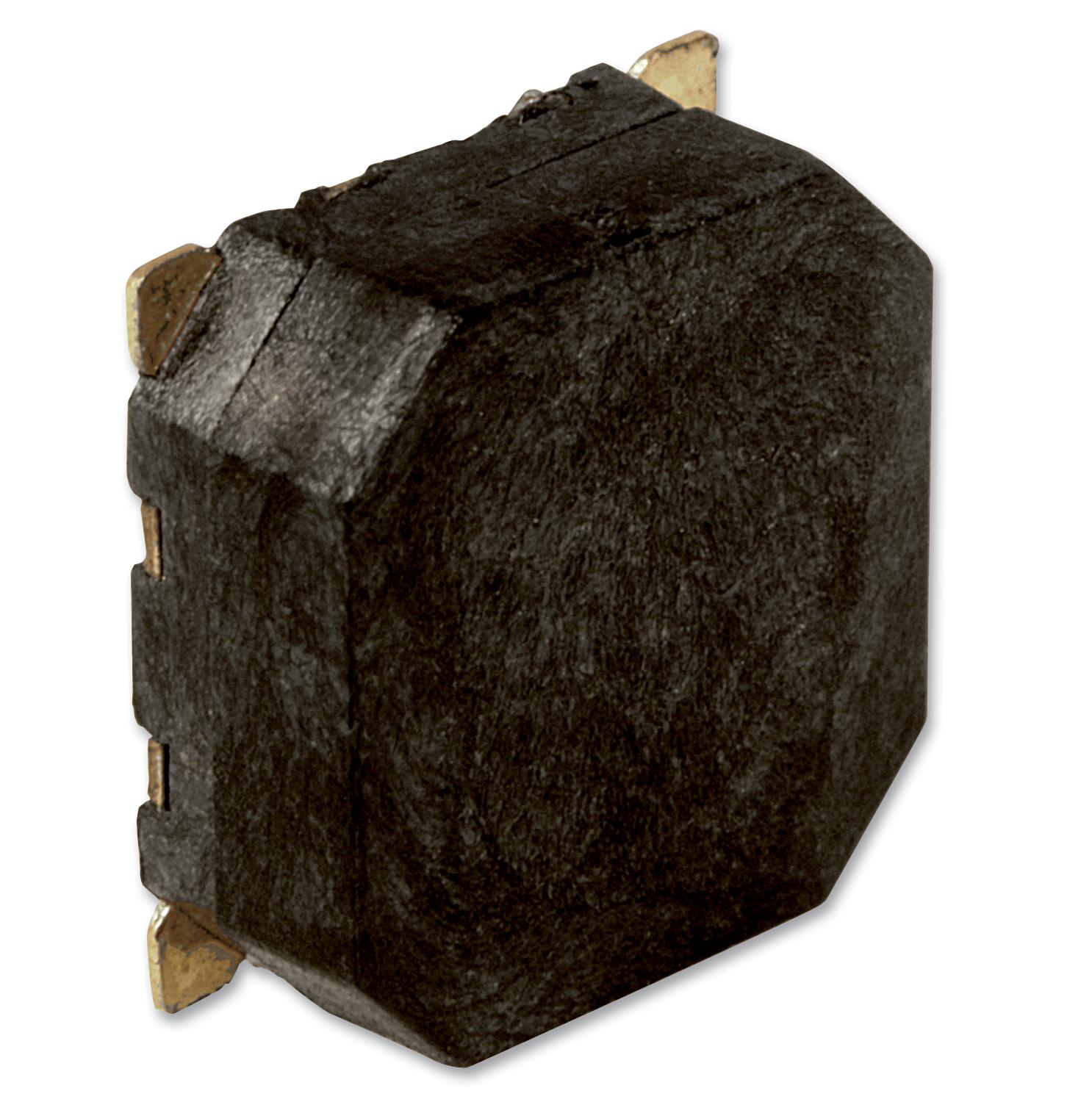

MULTICOMP PRO ABT443RC Audio Transducer
The electromechanical audio transducer is a surface-mount device designed for sound signal applications, featuring a small, low-profile housing made of LCP. It operates at a rated voltage of 3.6Vp-p and an operating range from 4.5 to 12.5Vp-p, with a sound output of 85dB at 2730Hz at 10cm. This transducer has a resonant frequency of 2730Hz, coil resistance of 216±30 ohms, and weighs only 0.5g. It requires additional circuitry to function as a sounder, operates from -40°C to +85°C, and complies with RoHS standards.
MULTICOMP PRO ABT443RC Audio Transducer Specifications:
- Rated voltage: 3.6Vp-p
- Operating voltage: 4.5 to 12.5Vp-p
- Rated current at rated voltage: 90mA
- Sound output at 2730Hz at 10cm: 85dB
- Resonant frequency: 2730Hz
- Coil resistance: 216±30 ohms
- Operating temperature: -40°C to +80°C
- Storage temperature: -40°C to +85°C
- Weight: 0.5g
- Housing material: LCP
- Dimensions: Small, low profile, surface mount
- Requires additional circuitry to operate as sounder
Buy the Electromechanical Surface Mount Transducer – Reliable Audio Signal for Industrial Applications
Order the ABT443RC audio transducer today for reliable sound signal transmission in compact spaces. Featuring a low-profile design, it delivers 85dB output at 2730Hz, with an operating voltage of 4.5 to 12.5Vp-p. Made of durable LCP housing, it weighs only 0.5g and works across a temperature range of -40°C to +85°C. This transducer is ideal for applications requiring precise audio alerts, requiring minimal circuitry to operate efficiently in various industrial environments. Buy online now and enhance your audio solutions!
Get ABT443RC today—built for precision and long-lasting durability in audio signaling projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ABT443RC?
You can click on the BUY or RFQ button to purchase ABT443RC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ABT443RC?
You can download the ABT443RC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ABT443RC?
MULTICOMP PRO
