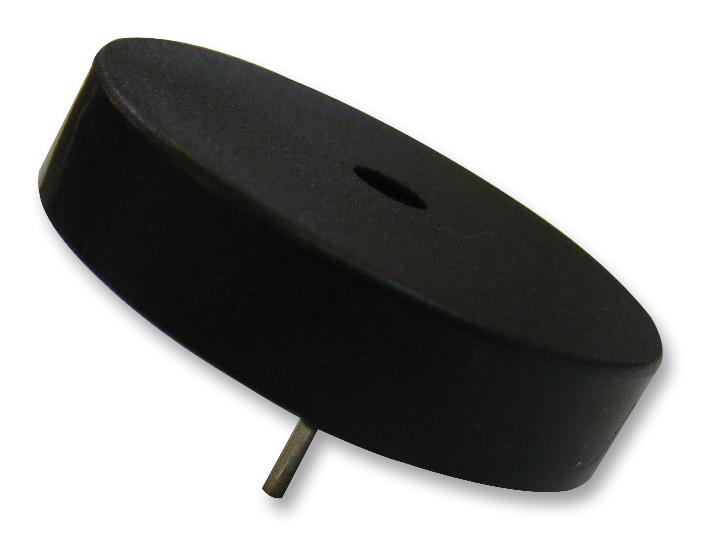

MULTICOMP-PRO ABT451RC Piezo Transducer
The ABT-451-RC is a high-output piezo transducer designed for sound generation in electronic alert systems. It operates with a voltage range of 1-30Vp-p, producing sound levels above 90dB at 10cm, with a resonant frequency of approximately 2800Hz. Made with durable black ABS housing, it features a 15.24mm pin pitch, operating within -20°C to +60°C temperatures. Suitable for various applications requiring continuous tone sound signals, its compact design ensures reliable performance in demanding environments.
MULTICOMP-PRO ABT451RC Piezo Transducer Specifications:
- Rated Voltage: 10Vp-p
- Operating Voltage: 1-30Vp-p
- Rated Current: 3mA
- Sound Output level: > 90dB @10cm
- Resonant Frequency: 2800Hz +500Hz
- Capacitance: 15000pF +30%
- Housing Material: Black ABS
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -30°C to +70°C
- Pin Pitch: 15.24mm
- Lead Wire: UL1571 AWG32
- Lead Length: 90mm
- Weight: 2g
Buy the Multicomp Series RC Piezo Transducer: ABT-451RC
Secure your Multicomp Series RC ABT-451RC piezo transducer now and enhance your electronic alert systems with reliable, high-decibel sound output. Designed for durable operation in a compact form factor, this transducer offers a resonant frequency of approximately 2800Hz, with an output level exceeding 90dB at 10cm. Its black ABS housing ensures durability and compactness, suitable for various industrial, security, and alarm applications. Buy online today and make sure your systems deliver clear, continuous tone signals reliably.
Order your Multicomp Series RC ABT-451RC piezo transducer today and give your alert systems the dependable sound generation they need.
