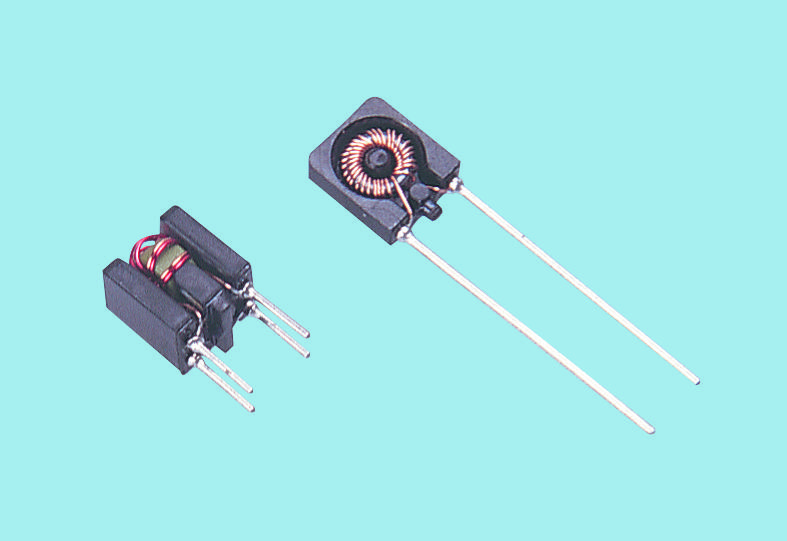

MULTICOMP PRO AS809535200U Toroidal Core Suppression Choke
The MULTICOMP PRO AS809535-200U is a toroidal core suppression choke designed for data line filtering applications. Featuring a high-performance Ni-Zn ferrite core and a plastic carrier for easy PCB mounting, this choke provides effective EMI suppression in a compact form factor. It's suitable for a wide range of applications including personal computers, microcomputers, peripheral devices, VCD/DVD players, monitors, and keyboards. The choke offers a 20µH inductance with ±35% tolerance and a low DC resistance, ensuring efficient performance in demanding environments.
MULTICOMP PRO AS809535200U Toroidal Core Suppression Choke Specifications:
- Voltage Rating: 50V
- Current Rating: 500mA
- Operating Temperature: -25°C to +85°C
- Inductance: 20μH
- Inductance Tolerance: +/-35%
- Resistance: <35mΩ
- Test Frequency: 1kHz
- Maximum Rated DC Current: 0.5A
- Rated Voltage: 50V
- Core Material: Ni-Zn Ferrite
- Base Material: Phenolic
- A (Maximum): 8
- B (Maximum): 9.5
- C (Maximum): 3.5
- D: 5 ±0.5
- E: 15.5 ±1
- F: 19.5 ±1
- G: 0.6 ±0.3
