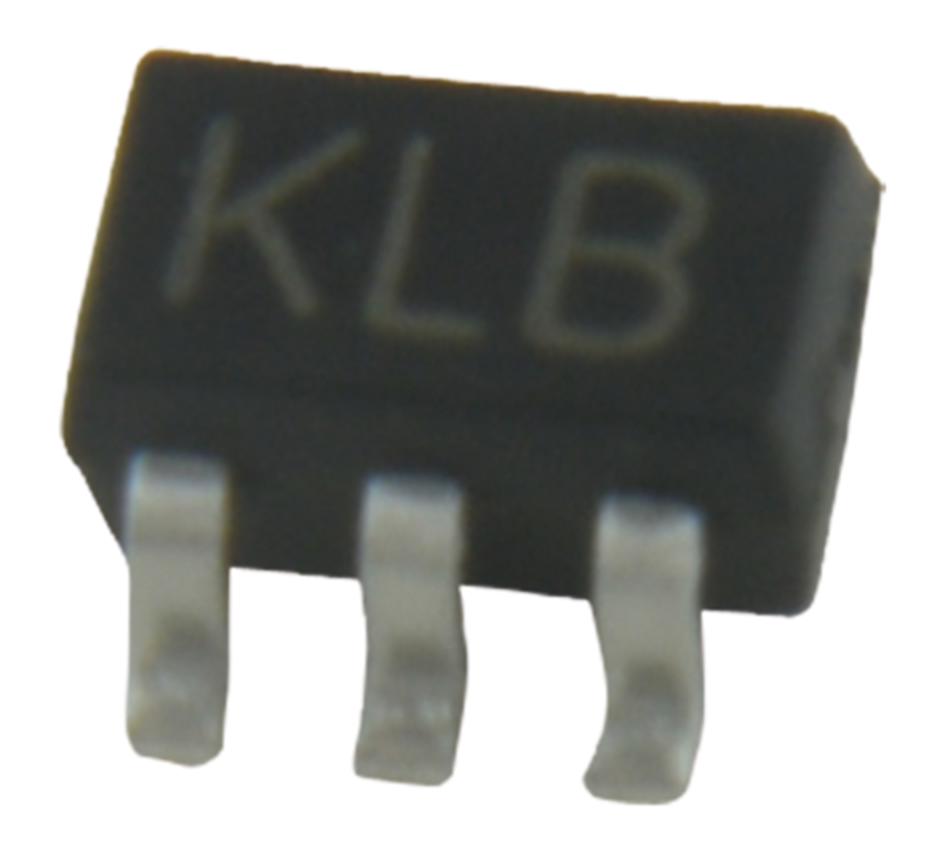

MULTICOMP PRO BAT54BRW7F Schottky Diode
This surface mount Schottky barrier diode from Multicomp Pro offers low forward voltage drop and fast switching capabilities, making it ideal for high-speed applications. It features a PN junction guard ring for transient and ESD protection in an ultra-small SOT-363 package. With a working peak reverse voltage of 30V, continuous forward current of 200mA, and low reverse leakage current, this diode ensures reliable operation in circuit protection and switching circuits. Suitable for various electronic devices requiring space-efficient and high-speed performance components.
MULTICOMP PRO BAT54BRW7F Schottky Diode Specifications:
- Repetitive peak reverse voltage VRRM: 30 V
- Working peak reverse voltage Vrms: 30 V
- DC reverse voltage VR: 30 V
- Forward continuous current IR: 200 mA
- Repetitive peak forward current IFRM: 300 mA
- Forward surge current Irs: 0.6 A
- Power dissipation Pp: 200 mW
- Thermal resistance Raa: 625 °C/W
- Maximum junction and storage temperature Tj, Tstg: -65 to +150 °C
- Reverse breakdown voltage V(BR)R: 30 V
- Average reverse current IR: 2 pA @ Vr=25V
- Forward voltage Ve: 400 mV @ IF=10mA, up to 1V @ 100mA
- Total capacitance Cr: 10 pF
- Reverse recovery time: 5 ns
- Package: SOT-363 surface mount
Buy the Multicomp Series Schottky Barrier Diode: BAT54BRW7F
Order the Multicomp Series Schottky Diode BAT54BRW7F online today! Perfect for high-speed switching, low forward voltage, and space-saving surface mount design. This diode offers excellent transient and ESD protection in a compact SOT-363 package, with a maximum reverse voltage of 30V and continuous forward current of 200mA. Its fast recovery time and low leakage current make it suitable for circuit protection, power supplies, and RF applications. Purchase now and ensure reliable, efficient performance in your electronic devices.
Buy Multicomp Series BAT54BRW7F diode now and experience unmatched reliability and high-speed switching performance for your electronic projects.
