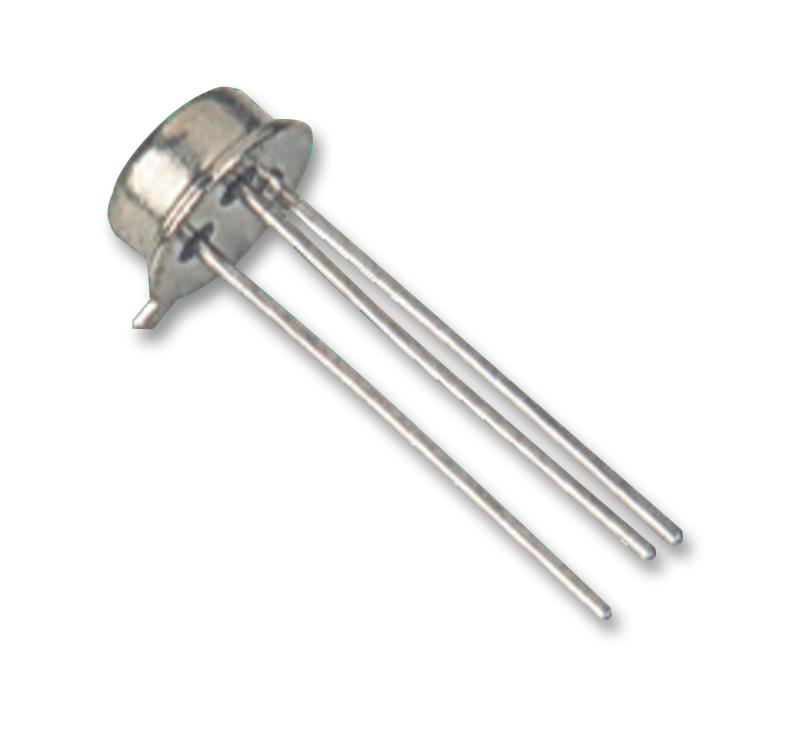

MULTICOMP PRO BC14116 NPN Transistor
The BC141-16 from Multicomp Pro is a through-hole NPN silicon planar epitaxial transistor housed in a TO-39 metal can. It is suitable for switching and amplification applications, featuring a collector-emitter voltage of 60V, continuous collector current of 1A, and a power dissipation of 800mW. The device operates within a junction temperature range of -65°C to 200°C, with a collector-emitter saturation voltage of 1V at 1A and a DC current gain of 40 at 100mA. It is used in signal processing, power management, portable devices, consumer electronics, and industrial applications.
MULTICOMP PRO BC14116 NPN Transistor Specifications:
- Package Type: TO-39 metal can
- Collector-Emitter Voltage: 60V
- Collector-Base Voltage: 100V
- Emitter-Base Voltage: 7V
- Collector Current: 1A
- Power Dissipation: 800mW
- Operating Temperature Range: -65°C to +200°C
- Junction to Ambient: 219°C/W
- Junction to Case: 44°C/W
- DC Current Gain: 40 at 100mA
- Collector-Emitter Saturation Voltage: 1V at 1A
- Transition Frequency: 50MHz
- Dimensions: A 8.5-9.39mm, B 7.74-8.5mm, C 6.09-6.6mm, D 0.4-0.53mm, E 0.88mm, F 2.41-2.66mm, H 0.71-0.86mm, J 0.73-1.02mm, K 127°, L 42°-48°
Buy the Multicomp BC141-16 – Reliable NPN Transistor for Industrial Applications
Order the Multicomp BC141-16 NPN Transistor today for superior switching and amplification performance. This robust TO-39 package device supports up to 1A collector current, operates efficiently in a wide temperature range, and ensures durability for industrial, consumer electronics, and power management applications. With a collector-emitter voltage of 60V and a saturation voltage of 1V, it delivers reliable results in signal processing, portable devices, and industrial systems. Purchase online now to benefit from fast delivery and dependable quality.
Buy Multicomp BC141-16 now and experience unmatched reliability and performance in switching and amplification tasks.
Frequently Asked Questions
Where can I buy MULTICOMP PRO BC14116?
You can click on the BUY or RFQ button to purchase BC14116 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part BC14116?
You can download the BC14116 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of BC14116?
MULTICOMP PRO
