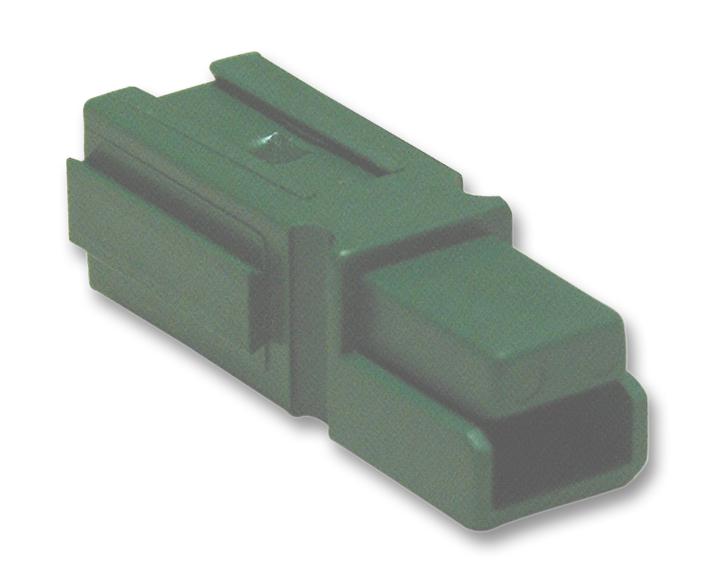

MULTICOMP PRO BMC1SGREEN Battery Modular Connector
The BMC series single connectors are available with current ratings ranging from 15A to 45A, suitable for continuous AC or DC operation at 600V. They feature color-matched mating to prevent misconnection, ensuring simple and fast assembly. Operating within -20°C to +125°C, these connectors are ideal for UPS systems, telecommunications, forklifts, wheelchairs, electric vehicles, and chargers. Made from durable materials, they ensure reliable performance, easy installation, and safety, making them essential components for power and battery systems in industrial applications.
MULTICOMP PRO BMC1SGREEN Battery Modular Connector Specifications:
- Housing Material: Polycarbonate (PC)
- Contact Material: Copper-Silver Plated
- Current Ratings: 15A, 30A, 45A
- Voltage Rating: 600 V
- Wire Range: AWG20-16, AWG16-12, AWG14-10
- Operating Temperature: -20°C to +125°C
- Color-Coded Housing: Red, Black, White, Green, Blue, Brown
- Series Ratings: 15A to 45A
- Maximum Barrel Diameter: 3 mm
- Contacts: Copper-Silver Plated or Copper-Tin Plated
Buy the Multicomp 1SGREEN – Reliable Battery Connectors for Industrial Applications
Enhance your power connection setup with the durable and reliable battery modular connectors from Multicomp. Designed for easy assembly, these connectors feature color-coded housings to prevent mismatching and operate reliably within a temperature range of -20°C to +125°C. Suitable for a variety of applications including UPS systems, electric vehicles, chargers, and telecommunication systems, they ensure safety and efficiency in demanding environments. Purchase online today for fast delivery and trusted performance in your electrical projects.
Buy Multicomp 1SGREEN battery connectors now and experience unmatched reliability and performance for power systems and industrial equipment.
Frequently Asked Questions
Where can I buy MULTICOMP PRO BMC1SGREEN?
You can click on the BUY or RFQ button to purchase BMC1SGREEN from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part BMC1SGREEN?
You can download the BMC1SGREEN datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of BMC1SGREEN?
MULTICOMP PRO
