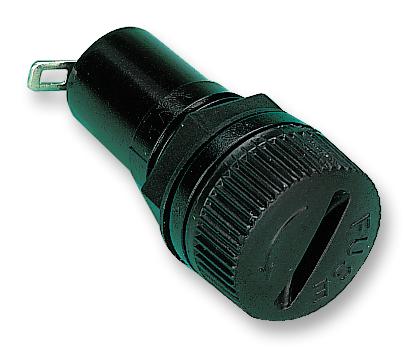

MULTICOMP PRO CFH05 Fuseholder
The panel mount fuseholder offers a compact design with finger release screw carrier and anti-rotation key fixing for easy installation and secure connections. It features combined solder and 2.8mm quick connect terminals, suitable for various electrical applications. Constructed with tinned nickel-plated brass contacts and UL94-V0 flame retardant polycarbonate molding, it ensures safety and durability. With a rated 10A/250V, dielectric strength over 3kV, and insulation resistance above 100MQ, it operates efficiently from -30°C to +85°C, making it ideal for reliable circuit protection in diverse environments.
MULTICOMP PRO CFH05 Fuseholder Specifications:
- Rating: 10A/250V
- Contacts: Tinned nickel plated brass
- Moulding: UL94-V0 flame retardant PC
- Dielectric Strength: >3kV
- Insulation Resistance: >100MQ
- Power Dissipation: 2.5W (VDE)
- Operating Temperature: -30°C to +85°C
- Physical Dimensions: 5mm x 20mm
- Terminals: Combined solder and 2.8mm quick connect
- Features: Finger release screw carrier, anti-rotation key fixing
- Compliance: RoHS, CE, SEMKO, UL recognized
- Use: Electrical circuit protection and connection
Buy the Multicomp Series Fuseholder: 10A/250V Panel Mount CFH05
Enhance your electrical setup with this reliable and compact fuseholder designed for panel mounting. Featuring finger release and anti-rotation key fixing, it ensures easy installation and secure connections. With combined solder and 2.8mm quick connect terminals, it supports versatile wiring options. Rated for 10A/250V, it incorporates tinned nickel-plated brass contacts and flame-retardant polycarbonate molding for safety and durability. Suitable for diverse electrical applications, it guarantees dependable circuit protection in various environments.
Buy multicomp series fuseholder CFH05 now and experience reliable circuit protection with easy finger release and secure anti-rotation fixing.
