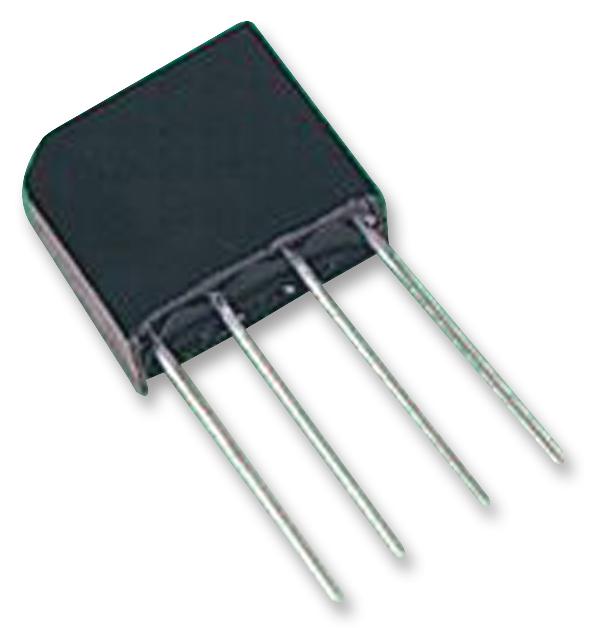

MULTICOMP PRO D4KB6L Bridge Rectifier
The D4KB6L is a glass passivated bridge rectifier designed for high surge current capability and reliable operation in electronic circuits. It features rugged, plated leads solderable per MIL-STD 202E, Method 208C, and a UL-94 V-0 recognized flame-retardant epoxy case. Rated at 600V reverse voltage and capable of handling 4A forward current, this rectifier excels in converting AC to DC, suitable for printed circuit boards with high dielectric strength and thermal resistance. It operates within a temperature range of -55°C to +150°C, providing efficient performance in various industrial applications.
MULTICOMP PRO D4KB6L Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 600V
- Maximum RMS Voltage: 420V
- Maximum DC Blocking Voltage: 600V
- Maximum Average Forward Rectified Output Current: 4A
- Peak Forward Surge Current: 135A at 8.3ms
- Maximum Forward Voltage at 4A: 0.92V
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: Not specified but suitable for broad industrial use
- Case Material: UL-94 V-0 flame-retardant epoxy
- Terminal: Plated leads solderable per MIL-STD 202E, Method 208C
- Mounting Position: Any
- Thermal Resistance without heatsink: 55°C/W, with heatsink: 127°C/W
- Polarity: Marked on body
Buy the Multicomp D4KB6L – Reliable Bridge Rectifier for Industrial Applications
Order the Multicomp D4KB6L glass passivated bridge rectifier online today and benefit from high surge current capability and robust performance in industrial circuits. Designed for converting AC to DC with high efficiency, it features a flame-retardant epoxy case, plated leads for soldering, and a broad operational temperature range from -55°C to +150°C. Perfect for printed circuit boards requiring high dielectric strength and thermal stability, this rectifier is essential for power supply units, automation, and electronic equipment ensuring durability and reliable operation.
Buy Multicomp D4KB6L high-current bridge rectifier online now and ensure reliable AC to DC conversion for your electronic projects and industrial equipment.
Frequently Asked Questions
Where can I buy MULTICOMP PRO D4KB6L?
You can click on the BUY or RFQ button to purchase D4KB6L from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part D4KB6L?
You can download the D4KB6L datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of D4KB6L?
MULTICOMP PRO
