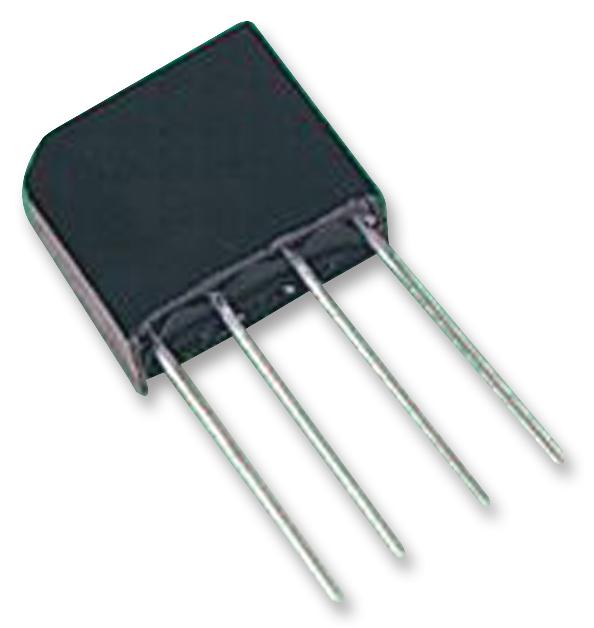

MULTICOMP PRO D6KB6U Bridge Rectifier
The D6KB6U is a glass passivated bridge rectifier designed for high surge current capability and high dielectric strength, making it suitable for printed circuit boards. It features plated leads solderable per MIL-STD 202E, Method 208C, and a UL-94 V-0 recognized flame-retardant epoxy case. Capable of handling reverse voltages up to 600V and forward currents of 6A, it performs efficiently under various load conditions, including resistive or inductive loads, with a maximum operating temperature of +150°C. Its robust construction ensures reliable performance in power rectification applications, providing durable, high-quality electrical conduction, with thermal resistance of approximately 55°C/W without heatsink.
MULTICOMP PRO D6KB6U Bridge Rectifier Specifications:
- Reverse Voltage: 600 Volts
- Forward Current: 6 Amperes
- Peak Forward Surge Current: 170 A
- Maximum RMS Voltage: 420 V
- Maximum DC Blocking Voltage: 600 V
- Maximum Recurrent Peak Reverse Voltage: 600 V
- Maximum Forward Voltage at 3A DC: 0.89 V
- Operating Temperature Range: -55°C to +150°C
- Thermal Resistance without heatsink: 55°C/W
- Mounting: Plated leads solderable per MIL-STD 202E, Method 208C
- Case Material: UL-94 V-0 recognized flame-retardant epoxy
- Dimensions: 0.94 x 0.71 x 0.16 inches (24 x 18 x 4 mm)
- Polarity: Marked on body
- Mounting Position: Any
Buy the Multicomp Series Bridge Rectifier: D6KB6U
Purchase the Multicomp D6KB6U bridge rectifier online today and ensure reliable power conversion with high surge current capacity and excellent thermal stability. This high-quality component offers a robust construction with plated leads, capable of handling 600V reverse voltage and 6A forward current, suitable for resistive and inductive loads. Its flame-retardant epoxy case and high thermal resistance make it ideal for demanding environments. Simplify your design and enhance your device's longevity by choosing this dependable, high-performance bridge rectifier for your power supply needs.
Buy Multicomp D6KB6U now and experience unmatched reliability and performance in high-current power rectification applications.
