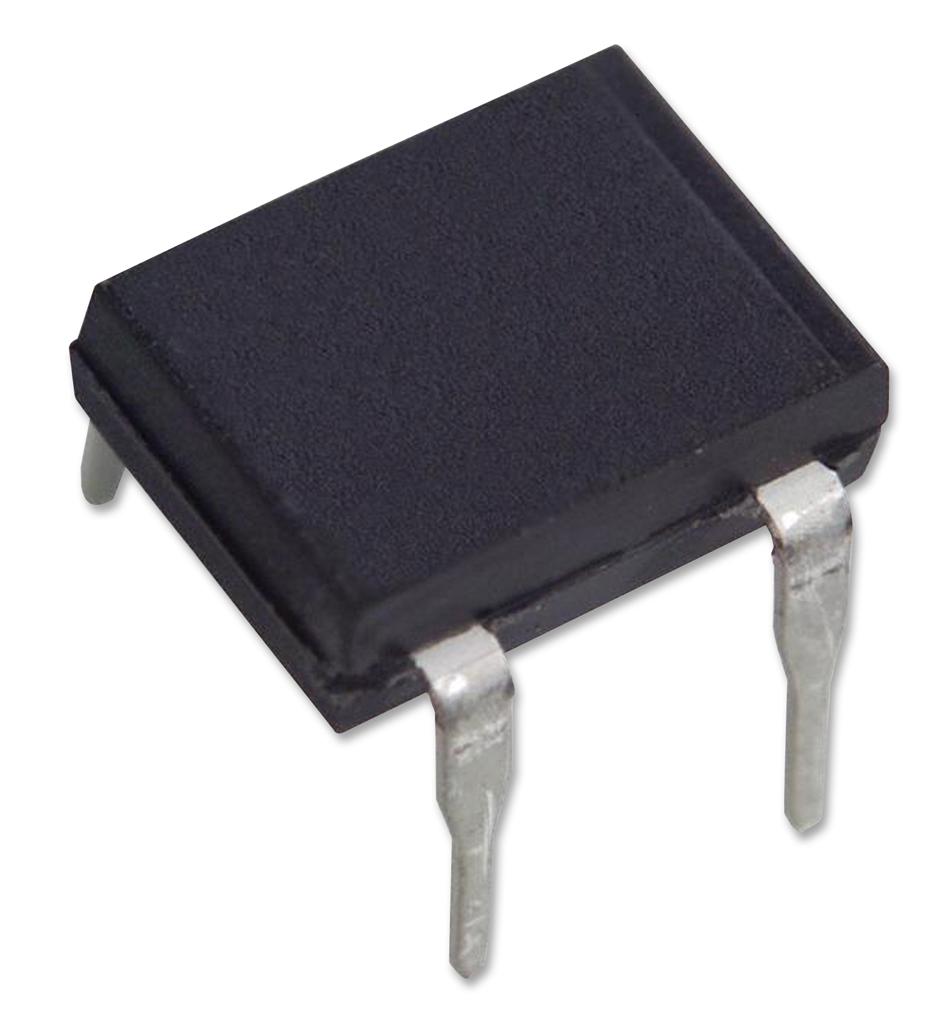

MULTICOMP PRO DF06 Bridge Rectifier
The bridge rectifier is a glass passivated, 1 Ampere, 600 Volt device designed for reliable conversion of AC to DC in electronic circuits. Featuring low forward voltage drop and high current capability, it suits printed circuit board applications with UL V-0 flammability classification. Its compact, molded plastic construction ensures low cost while maintaining durability. It operates efficiently across temperature ranges from -55°C to +150°C and handles peak surge currents of 30A. Its electrical characteristics include a maximum reverse voltage of 600V, RMS voltage 420V, and a junction capacitance of 25pF, making it ideal for various industrial and power supply uses.
MULTICOMP PRO DF06 Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage VRRM: 600V
- Maximum RMS Voltage VeMs: 420V
- Maximum DC Blocking Voltage Voc: 600V
- Maximum Average Forward Current: 1A
- Peak Forward Surge Current (8.3ms): 30A
- Maximum Instantaneous Forward Voltage at 1A: 1.1V
- Maximum DC Reverse Current at 25°C: 10pA
- Rated DC Blocking Voltage at 125°C: 500V
- Maximum Junction Capacitance: 25pF
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance (junction to ambient): 40°C/W
- Dimensions (millimeters): DF 8.5, 7.8, 8.2, 8.0, 5.2, 5.0
- Material: Glass passivated, molded plastic
- Polarity: As marked on body
- Mounting Position: Any
Buy the Farnell DF06 – Reliable Bridge Rectifier for Industrial Applications
Purchase the Farnell DF06 glass passivated bridge rectifier online today to ensure reliable AC to DC conversion in your projects. Featuring a 600V rating and 1A current capacity, it’s perfect for industrial power supplies and PCB applications. Its UL V-0 flammability rating guarantees safety, while its compact, cost-effective design offers excellent durability across a broad temperature range from -55°C to +150°C. Ideal for resistive and inductive loads, this rectifier ensures high performance and longevity in demanding electrical environments.
Get Farnell DF06 today—built for precision and long-lasting durability in power conversion and electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO DF06?
You can click on the BUY or RFQ button to purchase DF06 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part DF06?
You can download the DF06 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of DF06?
MULTICOMP PRO
