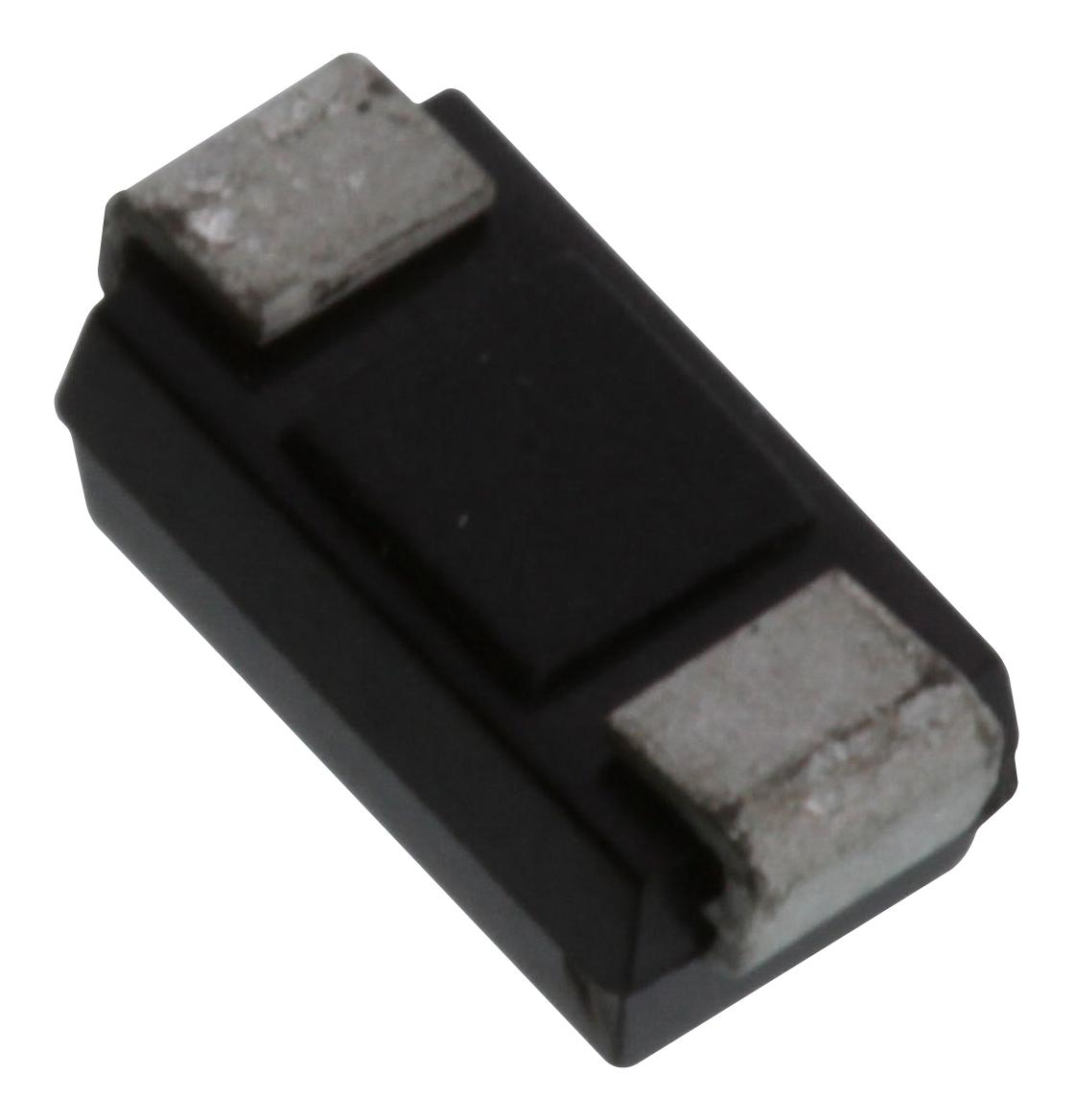

MULTICOMP PRO ES2DA Surface Mount Fast Diode
The super fast surface mount rectifier is a glass passivated diode designed for high efficiency in electronic circuits. It features low forward voltage drop of 0.95 V at 2A, high current capability, and a maximum reverse voltage of 200V. Its compact, molded plastic case is UL 94V-0 flammability rated, making it suitable for high-speed switching applications in resistive, inductive, and capacitive loads. The diode has a maximum reverse recovery time of 35 ns, operates over -55°C to +150°C, and offers low leakage current, ensuring reliable performance and durability in various electronic devices.
MULTICOMP PRO ES2DA Surface Mount Fast Diode Specifications:
- Maximum Recurrent Peak Reverse Voltage VRRM: 200 V
- Maximum RMS Voltage VeMs: 140 V
- Maximum DC Blocking Voltage Voc: 200 V
- Maximum Average Forward Rectified Current: 2 A
- Peak Forward Surge Current: 50 A at 8.3 ms
- Maximum Forward Voltage VF: 0.95 V at 2 A
- Maximum Reverse Current IR: 5 μA at 25°C, 100 μA at 100°C
- Maximum Reverse Recovery Time TRR: 35 ns
- Typical Junction Capacitance Cy: 40 pF
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Dimensions: 0.065(1.65) x 0.049(1.25) inches, 1.65mm x 1.25mm
Buy the Buy Multicomp Rectifier Part Number ES2DA+ Online
Order the Multicomp high-speed surface mount diode ES2DA+ online today for your electronic projects. With a maximum reverse voltage of 200V, 2A current capacity, and a 35 ns recovery time, this diode guarantees efficient switching in resistive, inductive, and capacitive loads. Its UL 94V-0 plastic case ensures safety and durability, making it ideal for applications requiring fast response times and reliable performance across a wide temperature range. Purchase now to enhance your circuit efficiency and dependability.
Get Multicomp rectifier ES2DA+ today—high-speed, high-current surface mount diode built for reliability and fast switching performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ES2DA?
You can click on the BUY or RFQ button to purchase ES2DA from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ES2DA?
You can download the ES2DA datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ES2DA?
MULTICOMP PRO
