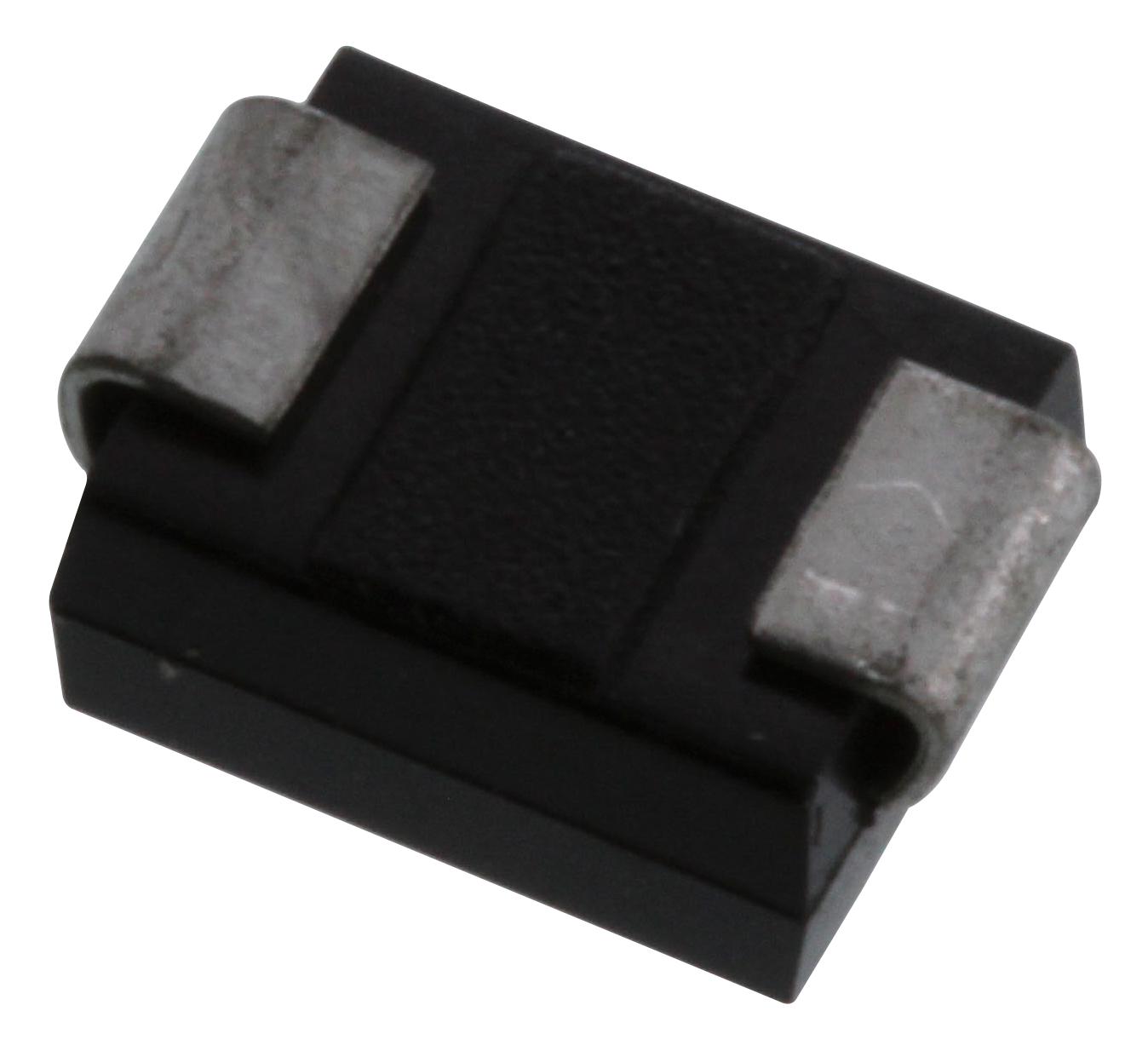

MULTICOMP PRO ES2G Surface Mount Fast Rectifier
The Super Fast Glass Passivated Rectifier is ideal for high-efficiency electronic circuits requiring fast switching capabilities. It features low forward voltage drop, high current handling, and low reverse leakage current. The compact molded plastic case supports mounting in any position and is UL 94V-0 certified for flammability safety. Withstanding reverse voltages from 50 to 600 volts and forward currents of 2 amperes, this rectifier is suitable for use in single-phase half-wave rectifier configurations, ensuring reliable performance in diverse electrical applications.
MULTICOMP PRO ES2G Surface Mount Fast Rectifier Specifications:
- Case: Molded Plastic
- Polarity: Colour band denotes cathode
- Weight: 0.003 ounces, 0.093 grams
- Mounting Position: Any
- Reverse Voltage: 50 to 600 Volts
- Forward Current: 2 Amperes
- Max. Recurrent Peak Reverse Voltage: 50 to 600 V
- Max. RMS Voltage: 35 to 420 V
- Max. DC Blocking Voltage: 50 to 600 V
- Peak Forward Surge Current: 50 A
- Maximum Forward Voltage at 2A: 0.95 V
- Maximum Reverse Leakage Current at 25°C: 5 uA
- Maximum Reverse Recovery Time: 35 ns
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Dimensions (Inches/Millimeters): .083(2.11) x .075(1.91) x .185(4.70) x .220(5.59)
Buy the Multicomp Series Super Fast Glass Passivated Rectifier: ES2G
Order the Multicomp Series ES2G surface mount fast rectifier online today to ensure high efficiency in your electronic applications. With low forward voltage drop, high current capability, and UL 94V-0 certification, this rectifier provides reliable performance. Its compact molded plastic case allows versatile mounting in any position, making it ideal for resistive or inductive loads in single-phase half-wave circuits. Secure your supply of high-speed rectifiers now for optimal circuit efficiency and safety needs.
Buy Multicomp Series ES2G now and experience unmatched reliability and performance with high-speed switching and low forward voltage drop.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ES2G?
You can click on the BUY or RFQ button to purchase ES2G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ES2G?
You can download the ES2G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ES2G?
MULTICOMP PRO
