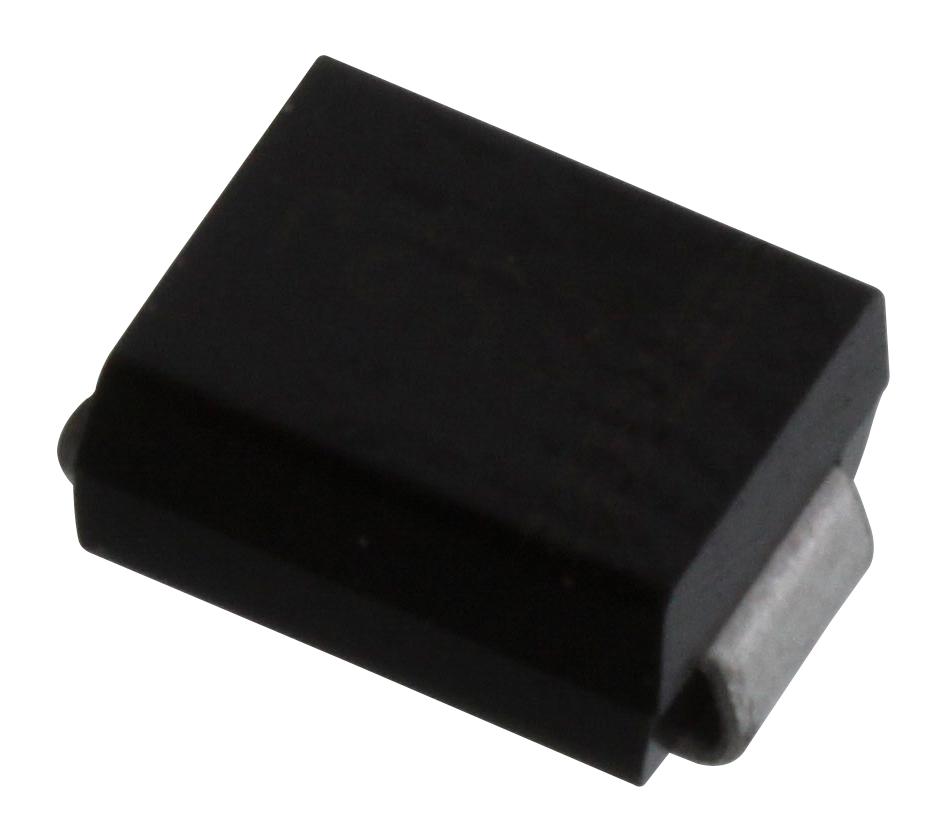

MULTICOMP PRO ES2J Surface Mount Rectifier
The multicomp surface mount super fast glass passivated rectifier offers high efficiency with rapid switching times, low forward voltage drop, and high current capability. It features a UL 94V-0 flammability-rated plastic case, making it suitable for various electronic applications. With a maximum reverse voltage of 50 to 600 volts and a forward current of 2 amperes, this rectifier is designed for use in single-phase half wave circuits at 60Hz, supporting resistive or inductive loads. Its compact, molded plastic design ensures reliable performance and versatile mounting options.
MULTICOMP PRO ES2J Surface Mount Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 50 to 600 V
- Maximum RMS Voltage: 35 to 420 V
- Maximum DC Blocking Voltage: 50 to 600 V
- Maximum Forward Surge Current: 50 A
- Maximum DC Reverse Current @ 25°C: 5 µA
- Maximum Reverse Recovery Time: 35 ns
- Peak Forward Voltage at 2A DC: 0.95 V
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Polarity: Cathode denoted by colour band
- Material: Glass passivated chip, plastic case UL V-0 rated
- Mounting Position: Any, Surface mount design
- Dimensions: Length approximately 2.11 mm, width approximately 1.91 mm, height approximately 0.76 mm
Buy the Buy multicomp Surface Mount Fast Rectifier Part Number ES2J Online
Experience the efficiency and reliability of the multicomp surface mount rectifier ES2J, featuring fast switching times, low forward voltage drop, and high current capacity. Perfect for power conversions in resistive or inductive loads, this compact, UL-rated plastic package supports versatile mounting and ensures long-lasting performance. Ideal for use in electronic circuits requiring high voltage handling, it provides dependable operation with a maximum reverse voltage of up to 600 volts and a forward current of 2 amperes. Upgrade your power management with this high-quality rectifier today.
Get multicomp ES2J today—designed for fast switching and reliable power rectification in compact electronic systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO ES2J?
You can click on the BUY or RFQ button to purchase ES2J from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part ES2J?
You can download the ES2J datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of ES2J?
MULTICOMP PRO
