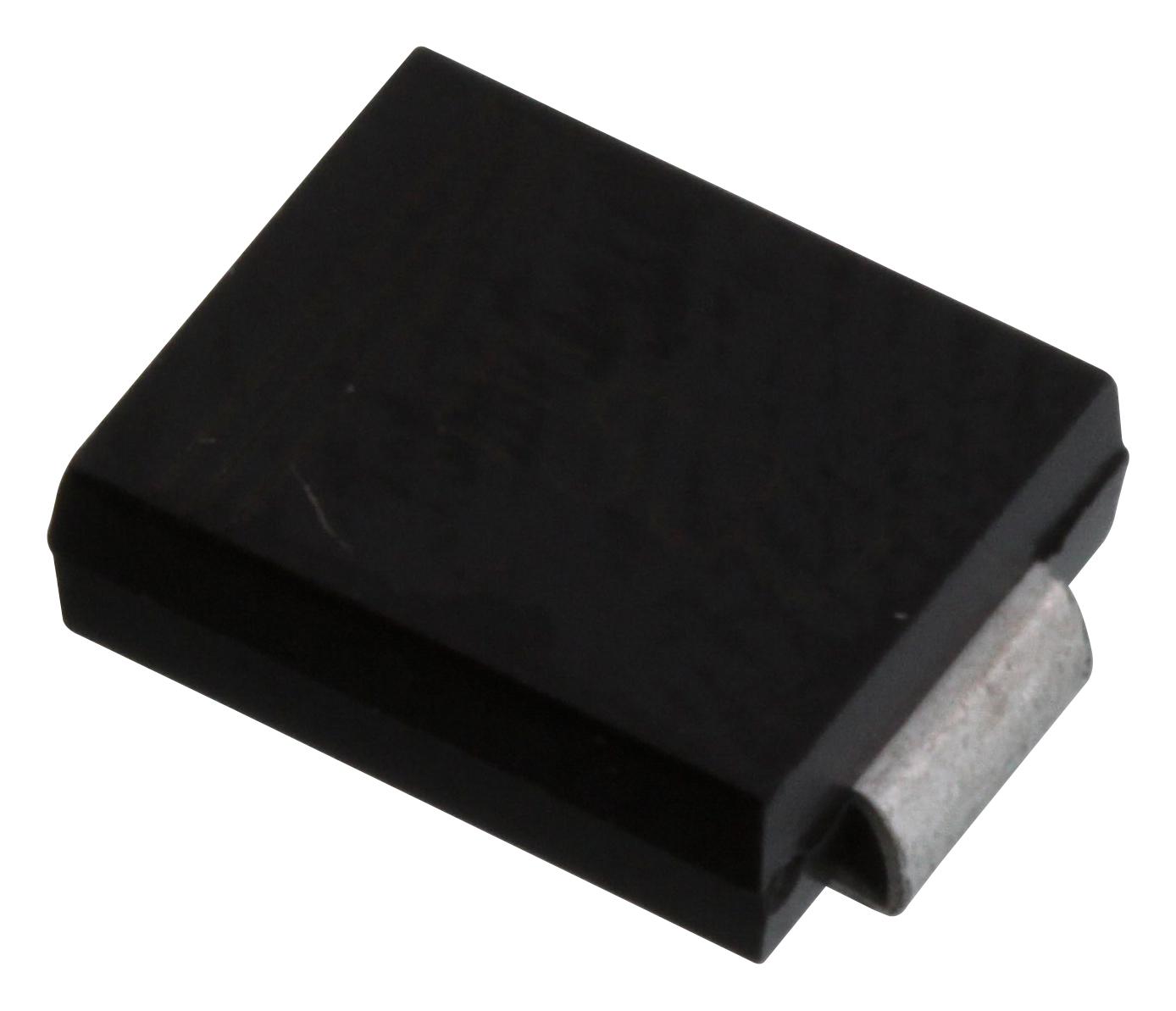

MULTICOMP PRO ES3J Ultrafast Diode
The ultra-fast diode ES3J+ offers excellent switching performance with a 3A current rating and a 600V peak reverse voltage, making it suitable for high-speed rectification in power supplies and electronic circuits. Its glass passivated junction and low-profile package allow easy surface mounting and automated assembly, while built-in strain relief ensures durability in demanding environments. Capable of high-temperature soldering at 260°C for 10 seconds, this diode features low reverse leakage current and rapid recovery time of 35 ns, providing high efficiency and reliability in industrial and electronic applications. Its robust design makes it ideal for fast switching power applications.
MULTICOMP PRO ES3J Ultrafast Diode Specifications:
- Cases: Moulded plastic
- Terminals: Pure tin plated, lead free
- Polarity: Indicated by cathode band
- Packing: 16mm tape per EIASTD RS-481
- Weight: 0.21g
- Maximum Recurrent Peak Reverse Voltage: 600V
- Maximum RMS Voltage: 420V
- Maximum DC Blocking Voltage: 600V
- Maximum Average Forward Rectified Current: 3A
- Peak Forward Surge Current, 8.3ms: 100A
- Maximum Instantaneous Forward Voltage: 17V at 3A
- Maximum DC Reverse Current at 25°C: 10pA
- Maximum Reverse Recovery Time: 35ns
- Junction Capacitance: 30pF
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: Not specified
- Maximum Thermal Resistance: 12°C/W
Buy the Multicomp ES3J+ – Reliable Fast Rectifier for Industrial Applications
Purchase the Multicomp ES3J+ ultrafast diode online today to benefit from quick delivery, superior switching speed, and dependable operation in power supply and industrial circuits. Designed for surface mounting, it ensures easy integration into automated manufacturing processes. With a 600V peak reverse voltage and 3A current capacity, this diode is perfect for high-frequency, high-efficiency rectification applications. Its robust plastic package and built-in strain relief guarantee durability and long-term performance, making it the ideal choice for demanding electronic and industrial applications.
Buy Multicomp ES3J+ ultrafast diode now and experience high-speed switching performance and reliable power rectification for your industrial needs.
