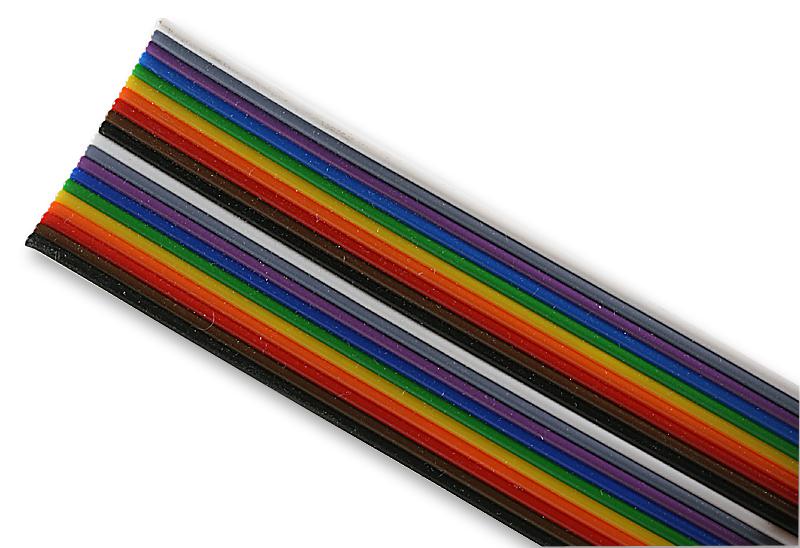

MULTICOMP-PRO FBLA102025 Edge-Bonded Ribbon Cable
The Edge-Bonded Ribbon Cable from the FBLA Series is a versatile, flat cable solution designed with color-coded PVC insulation and bonded construction for easy separation. Suitable for various applications, it features stranded copper conductors with sizes of 7/0.2mm or 16/0.2mm, rated for a maximum operating voltage of 300V and a test voltage of over 1.5kV. The cable is flame-retardant, with a Shore hardness of 90A #3A, and functions effectively across temperatures from -20°C to +80°C, making it ideal for reliable, organized wiring in electronic and industrial systems.
MULTICOMP-PRO FBLA102025 Edge-Bonded Ribbon Cable Specifications:
- Conductor Size: 7/0.2mm or 16/0.2mm (20 AWG or 24 AWG)
- Number of Ways: 10, 20, or 30
- Reel Length: 10m, 25m, or 50m
- Insulation Material: PVC, with MIL681 colors
- Insulation Thickness: 1.42mm +0.1mm or 1.8mm +0.1mm
- Wire Gauge: AWG 24 or AWG 20, tin-plated
- Test Voltage: >1.5kV at 50Hz for 1 minute
- Maximum Operating Voltage: 300V
- Operating Temperature Range: -10°C to +80°C
- Flame retardant: Yes, according to DIN VDE 0482 part 332-1-2 / IEC 60332-1-2
- Conductor Resistance: Max 85Ω/km for 24 AWG, 40.10Ω/km for 20 AWG
- Insulation Resistance: Min 20MΩ·km at 20°C
- Bend Radius: 5 x diameter once, 10 x diameter repeatedly
Buy the Buy multicomp Edge-Bonded Ribbon Cable Part Number FBLA102025 Online
Purchase the multicomp Edge-Bonded Ribbon Cable FBLA102025 online today for a dependable, organized wiring solution with flame-retardant insulation, flexible bend radius, and compatible with various industrial and electronic applications. This flat cable features stranded copper conductors in multiple sizes, high insulation resistance, and quality construction rated for 300V and tested at over 1.5kV, ensuring safety and performance in demanding environments. Ideal for neat, discrete wiring, its versatile design helps streamline complex cable management and maintenance tasks.
Order your multicomp SeriesFBLA Edge-Bonded Ribbon Cable FBLA102025 today and ensure reliable, organized wiring for your electronic projects and industrial systems.
