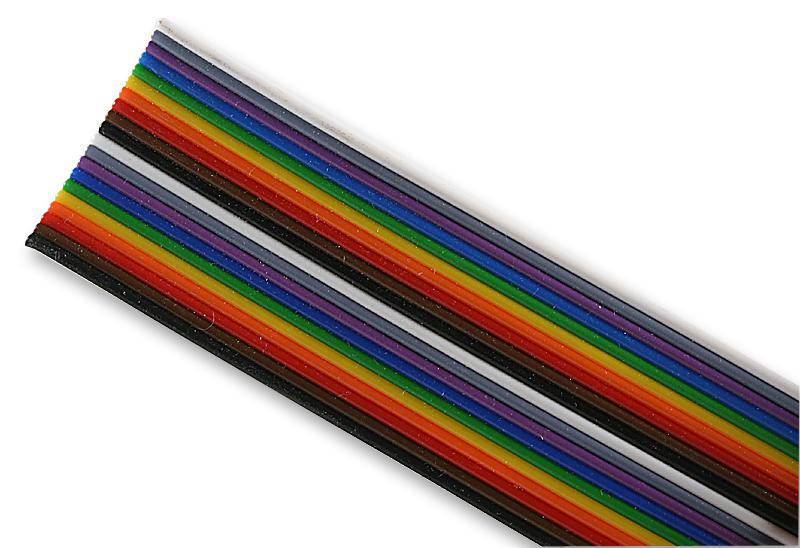

MULTICOMP PRO FBLA202050 Ribbon Cable
This flexible ribbon cable features color-coded PVC insulation with either 7/0.2mm or 16/0.2mm tinned copper conductors, designed for neat wiring and easy separation. Available in 10, 20, or 30 way configurations, it offers reliable performance with maximum conductor resistance of 87.2Ω/km for 0.22mm2 and 38.2Ω/km for 0.5mm2 sizes. The cable operates at voltages up to 600V, with insulation rated for 70°C. Ideal for discrete wiring in electronic and industrial applications, it simplifies multi-wire connections with easy-to-strip cores.
MULTICOMP PRO FBLA202050 Ribbon Cable Specifications:
- Conductor Type: Tinned copper
- Conductor Sizes: 7/0.2mm (0.22mm2), 16/0.2mm (0.5mm2)
- Insulation Material: PVC
- Maximum Operating Temperature: 70°C
- Operating Voltage: up to 600V
- Conductor Resistance: 87.2Ω/km for 0.22mm2, 38.2Ω/km for 0.5mm2
- Insulation Resistance: Minimum 95MQ/km for 0.22mm2, 200MQ/km for 0.5mm2
- Number of Ways: 10, 20, 30
- Strip Length: Reel lengths of 10, 25, 50 meters
- Cable Width: 14.0 mm for 7/0.2mm, 15.5 mm for 16/0.2mm
- Temperature Rating: 70°C
- Voltage Rating: 300V for 7/0.2mm, 600V for 16/0.2mm
- Reel Lengths: 10m, 25m, 50m
Buy the Buy Premier Farnell Ribbon Cable Part Number FBLA202050 Online
Order the Premier Farnell Ribbon Cable FBLA202050 online today for dependable, easy-to-manage wiring connections. This flexible, color-coded cable features PVC insulation and tinned copper conductors available in 10, 20, or 30 ways. Suitable for automation, control panels, and internal wiring, it ensures optimal performance at voltages up to 600V and operating temperatures up to 70°C. Easily strip cores for soldering or connector fitting, streamlining your assembly process and ensuring maintenance flexibility. Perfect for professional electronics and industrial use.
Buy Premier Farnell FBLA202050 ribbon cable now and experience reliable, color-coded wiring solutions for industrial and electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO FBLA202050?
You can click on the BUY or RFQ button to purchase FBLA202050 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part FBLA202050?
You can download the FBLA202050 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of FBLA202050?
MULTICOMP PRO
