MULTICOMP PRO FDD5250 Female Quick Disconnect

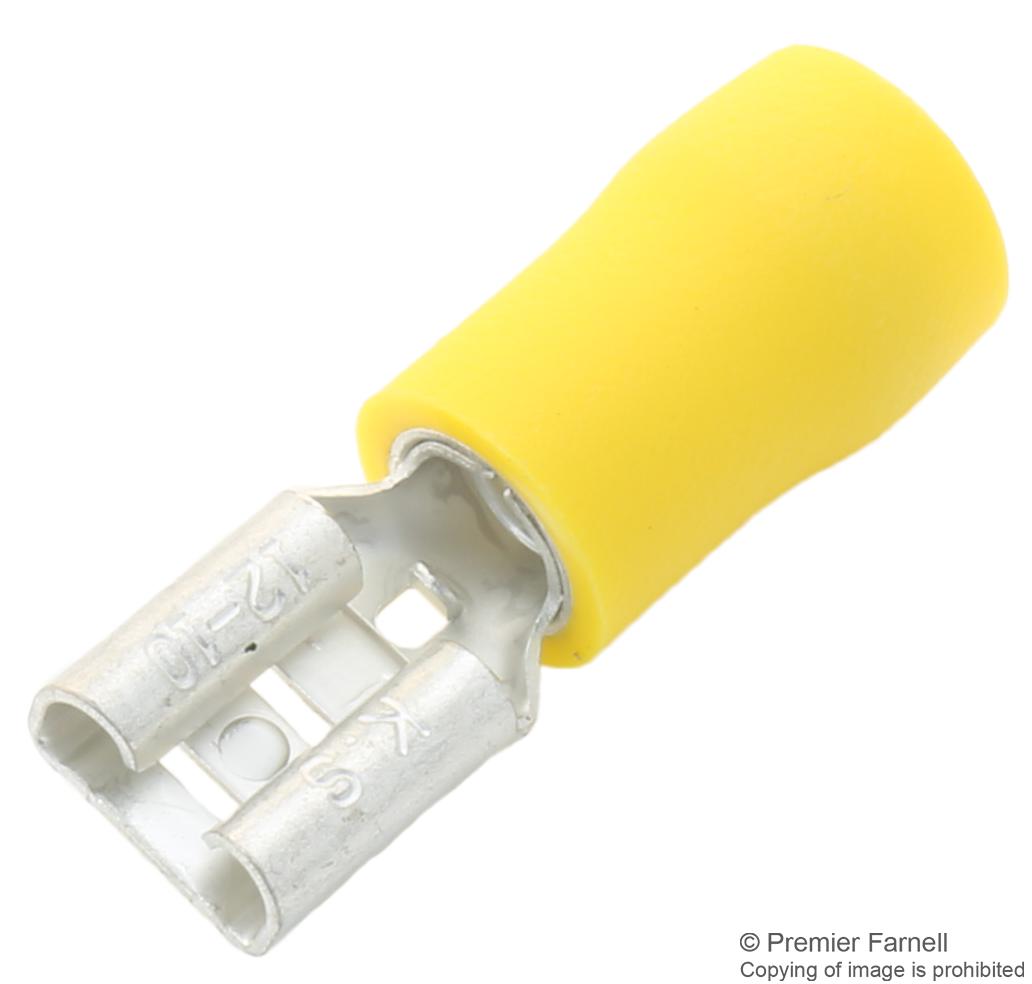

The FDD5-250 is a yellow female push-on double crimp terminal with vinyl insulation, made of brass and copper, conforming to BS6017 (1981) standards. It features a quick disconnect design with electro-tin plating according to BS1872 (1984), and an easy cable entry guide to prevent strand flare. The terminal has an indentation above the crimp for correctness verification and accepts 12 to 10 AWG wire gauge. It complies fully with BS4579, IEC352-2, and ISO1996 standards, with a rated current of 10A, a maximum electrical rating of 600V at 105°C, and an operating temperature range of -20°C to +85°C. Suitable for industrial, communication, and networking applications.
MULTICOMP PRO FDD5250 Female Quick Disconnect Specifications:
- Material: Brass and copper
- Insulation Material: Vinyl
- Color: Yellow
- Wire Range: 12-10 AWG
- Rated Current: 10A
- Maximum Electrical Rating: 600V at 105°C
- Operating Temperature Range: -20°C to +85°C
- Standards: BS6017, BS1872, BS4579, IEC352-2, ISO1996
- Crimp Style: Double crimp with copper sleeve
- Connection Type: Push-on female
- Cable Entry Guide: Yes, to prevent strand flare
- Temperature Rating: 105°C
- Certifications: Complies with international safety standards
Buy the Multicomp FDD5250 – Reliable Female Quick Disconnects for Industrial Applications
Purchase the Multicomp FDD5250 female quick disconnect terminal online today to ensure reliable connections in industrial, communication, and networking systems. This yellow vinyl-insulated terminal features a double crimp design with a copper sleeve for secure attachment of 12-10 AWG wire, rated for 10A and 600V at 105°C. Its easy cable entry guide prevents strand flare, making installation straightforward. Designed to meet BS, IEC, and ISO standards, it offers durability, safety, and quality for professional electrical projects.
Get Multicomp FDD5250 today—built for precision and long-lasting durability in industrial and networking environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO FDD5250?
You can click on the BUY or RFQ button to purchase FDD5250 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part FDD5250?
You can download the FDD5250 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of FDD5250?
MULTICOMP PRO
