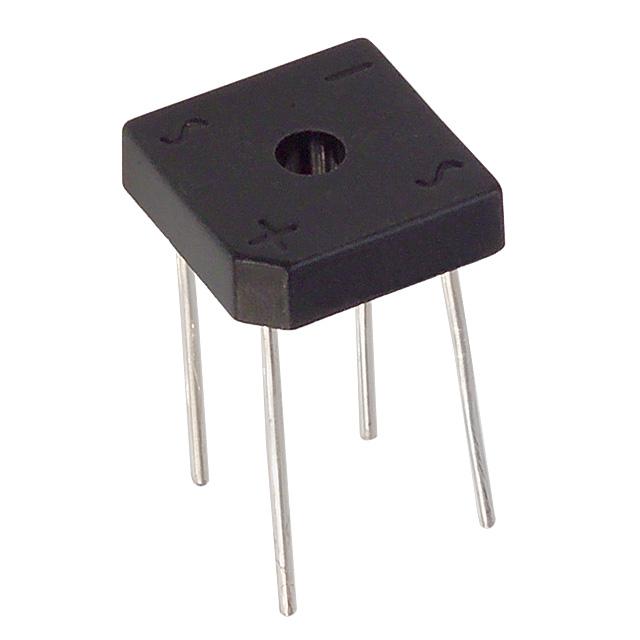

MULTICOMP PRO GBPC2501W Bridge Rectifier
The GBPC2501W is a high-reliability bridge rectifier designed for industrial applications. It features a plastic mold housing with an integrally molded heatsink for efficient thermal management. This component supports surge overload ratings from 300 to 400A and has solderable terminals conforming to MIL-STD-202, method 208. It offers a low leakage current, typically less than 0.2uA, and is capable of operating at high temperatures up to 150°C. Suitable for converting AC to DC in various power supply systems, it ensures excellent performance with maximum voltage ratings up to 200V and a robust design for demanding environments.
MULTICOMP PRO GBPC2501W Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage VRRM: 100-1000V depending on model
- Maximum RMS Voltage Vrms: 70-700V depending on model
- Maximum DC Blocking Voltage Voc: 100-1000V depending on model
- Maximum Average Forward Rectified Current at 55°C: 15A to 35A depending on model
- Peak Forward Surge Current: 300A to 400A
- Maximum Instantaneous Forward Current: 17.5A to 35A depending on model
- Forward Voltage Drop Per Element at Rated Current: approximately 1.4V to 1.7V
- Maximum DC Reverse Current Ir: 5mA
- Typical Thermal Resistance Junction to Case: 1.5°C/W
- Operating and Storage Temperature Range: -50°C to +150°C
- Dimensions: approximately 0.97 inches (24.7 mm) x 0.54 inches (13.7 mm), mounting hole diameter 0.22 inches (5.59 mm)
- Material: Plastic housing, solderable terminals, isolated voltage from case over 2,500V
Buy the Multicomp GBPC2501W – Reliable Bridge Rectifier for Industrial Applications
Purchase the Multicomp GBPC2501W online today to ensure high-performance rectification for industrial power supplies. Designed with a rugged plastic housing and integrally molded heatsink, it offers excellent thermal dissipation and surge overload ratings up to 400A. This bridge rectifier features solderable terminals conforming to MIL-STD-202, method 208, and supports high ambient temperatures up to 150°C. Its low leakage current, maximum voltage ratings up to 200V, and compact dimensions make it ideal for demanding industrial environments, providing reliable AC to DC conversion in various power supply modules.
Get Multicomp GBPC2501W today—built for precision current handling and long-lasting durability in power systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBPC2501W?
You can click on the BUY or RFQ button to purchase GBPC2501W from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBPC2501W?
You can download the GBPC2501W datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBPC2501W?
MULTICOMP PRO
