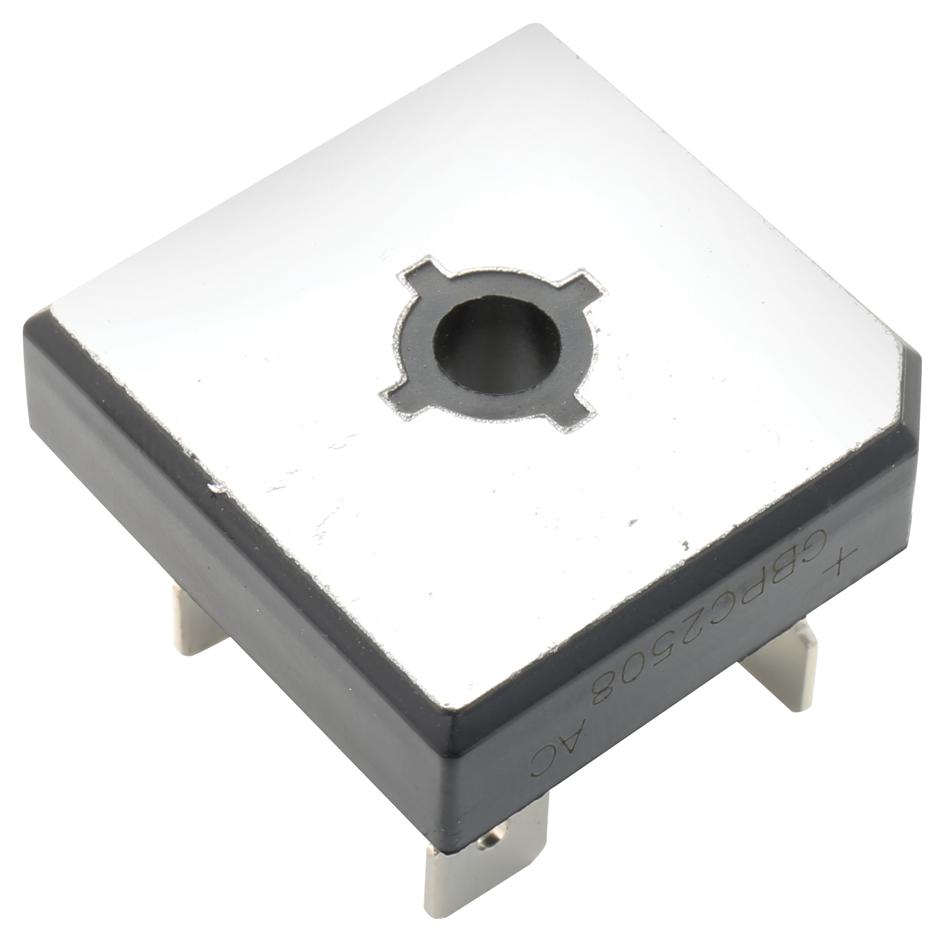

MULTICOMP PRO GBPC2508 Bridge Rectifier
The GBPC2508+ is a high-quality bridge rectifier designed for use in power conversion applications. It features a surge overload rating from 300A to 450A, low forward voltage drop, and an electrically isolated base rated at 2,000V. The device supports mounting in any position and is equipped with solderable 0.25-inch FASTON terminals for secure connections. Suitable for resistive, inductive, and capacitive loads, it can operate over a temperature range of -50°C to +150°C. Ideal for industrial power supplies, converters, and rectification circuits, ensuring reliable performance at high currents and voltages.
MULTICOMP PRO GBPC2508 Bridge Rectifier Specifications:
- Maximum Repetitive Peak Reverse Voltage: 800V
- Maximum RMS Bridge Voltage: 560V
- Maximum Forward Rectified Output Current: 25A at 55°C
- Peak Forward Surge Current: 450A for 8.3ms
- Forward Voltage Drop: 1.1V at 17.5A peak
- Max Reverse Current: 10pA at rated voltage
- Operating Temperature Range: -50°C to +150°C
- Mounting: Any position, solderable 0.25 inch FASTON terminals
- Electrical Isolation: 2,000V
- Surge Overload Rating: 300A to 450A
- Dimensions: 1.130 inches length, 0.661 inches wide, with hole for No.8 screw
Buy the Buy Multicomp Bridge Rectifier Part Number GBPC2508+ Online
Purchase the Multicomp GBPC2508+ bridge rectifier online today for your industrial, power supply, or conversion applications. Offering a surge overload rating from 300A to 450A, low forward voltage drop, and operating temperature from -50°C to +150°C, this rectifier guarantees robust performance and dependable operation. With a maximum repetitive peak reverse voltage of 800V and a maximum RMS voltage of 560V, it supports efficient power rectification. Its solderable terminals and electrically isolated base ensure flexible installation in any position, making it ideal for demanding electrical environments.
Buy Multicomp GBPC2508+ now and experience unmatched reliability and high current performance in your power conversion projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBPC2508?
You can click on the BUY or RFQ button to purchase GBPC2508 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBPC2508?
You can download the GBPC2508 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBPC2508?
MULTICOMP PRO
