MULTICOMP PRO GBPC2510W High-Current Bridge Rectifier
The GBPC2510W is a high-current bridge rectifier capable of handling 25A at 1000V, featuring plastic molding, integrally molded heatsink for efficient heat dissipation, surge overload ratings up to 400A, solderable terminals compliant with MIL-STD-202, and isolation voltage over 2,500V. Suitable for use in power supplies, motor drives, and other industrial applications requiring reliable rectification at high voltages and currents, it offers low forward voltage, high surge capacity, and excellent thermal performance, ensuring durability and consistent operation in demanding environments.
MULTICOMP PRO GBPC2510W High-Current Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 1000V
- Maximum RMS Voltage: 700V
- Maximum DC Blocking Voltage: 1000V
- Maximum Average Forward Rectified Current: 25A
- Peak Forward Surge Current: 400A
- Maximum Instantaneous Forward Voltage Drop: VF 1.4V at 12.5A
- Maximum DC Reverse Current: 5mA
- Thermal Resistance: 1.5°C/W
- Operating Temperature Range: -50°C to +150°C
- Dimensions: length 0.762 inches (19.1mm), width 0.432 inches (11mm), mounting hole diameter 0.2 inches (5.08mm)
- Material: Plastic with integrally molded heatsink
- Terminals: Solderable per MIL-STD-202, Method 208
- Isolation Voltage: over 2,500V

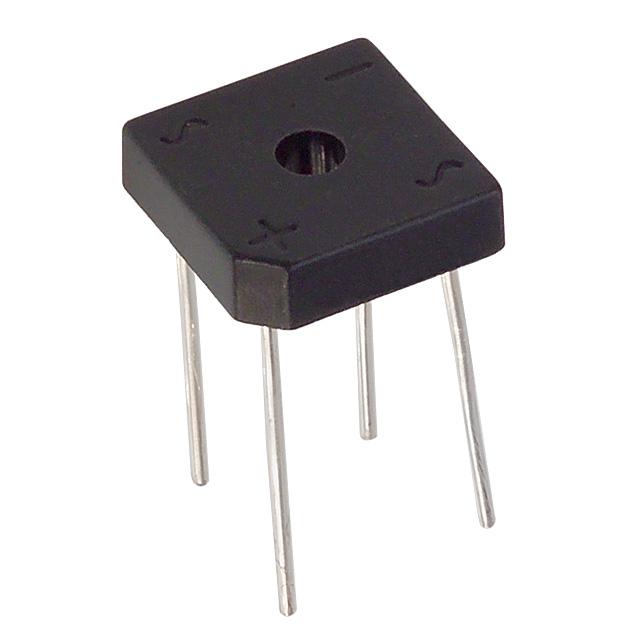

Buy the Avnet GBPC2510W – Reliable Bridge Rectifier for Industrial Applications
Acquire the Avnet GBPC2510W online today and experience reliable high-current rectification with excellent thermal management and surge capacity. Designed for industrial applications, this robust bridge rectifier ensures efficient power conversion, durability, and safety. Its integrally molded heatsink, solderable terminals, and high isolation voltage make it ideal for power supplies, motor drives, and other demanding electronics. Purchase now to equip your projects with a proven component that delivers consistent performance and long-term reliability in harsh operational environments.
Get Avnet GBPC2510W today—built for high-current rectification and long-lasting durability in industrial power systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBPC2510W?
You can click on the BUY or RFQ button to purchase GBPC2510W from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBPC2510W?
You can download the GBPC2510W datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBPC2510W?
MULTICOMP PRO
