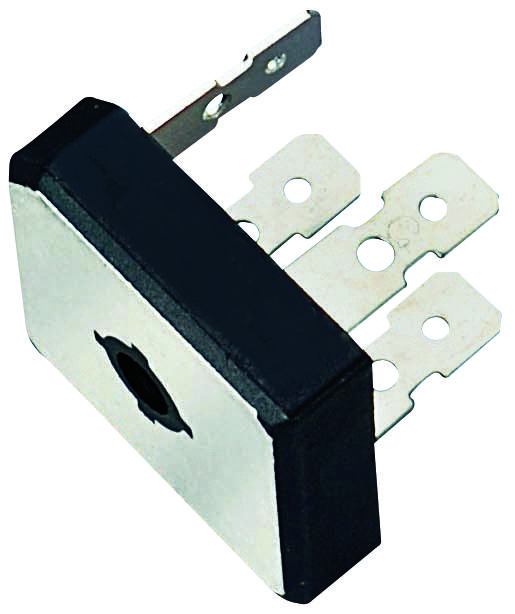

MULTICOMP PRO GBPC3501 Bridge Rectifier
The GBPC3501 is a robust, 4-pin single-phase bridge rectifier diode featuring an integrated molded heatsink for effective heat dissipation and low thermal resistance. It includes solderable terminals compliant with MIL-STD-202, method 208, and can withstand high-temperature soldering at 260°C for 10 seconds with 0.375-inch lead lengths. Designed for power conversion, it offers a surge overload rating between 300 and 400A, over 2500V isolation from case to lead, and handles voltages up to 70V RMS. Its wide temperature range of -55°C to 150°C makes it ideal for demanding industrial electronics and mains rectification applications, ensuring reliability and high performance.
MULTICOMP PRO GBPC3501 Bridge Rectifier Specifications:
- Type: Single-phase bridge rectifier
- Number of Pins: 4
- Thermal Management: Integrally molded heatsink for low thermal resistance
- Terminal Compliance: Solderable per MIL-STD-202, method 208
- Soldering Capability: High temperature soldering at 260°C for 10 seconds
- Lead Lengths: 0.375 inches (9.5mm)
- Surge Overload Rating: 300 to 400 amperes
- Isolation Voltage: Over 2500 volts from case to lead
- Maximum RMS Voltage: 70V
- Maximum Continuous Forward Voltage: 1.0V at rated current
- Peak Forward Surge Current: 300A to 400A depending on model
- Operating Temperature Range: -55°C to 150°C
- Maximum Recurrent Peak Reverse Voltage: 50V to 1000V depending on model
- Maximum DC Blocking Voltage: 50V to 1000V depending on model
- Mounting Style: Through-hole with screw hole for #10 screws
- Application: Mains rectification, industrial power supplies, and high-current switching
- Certifications: UL Recognized, RoHS Compliant
Buy the Multicomp Pro GBPC3501 – Reliable Bridge Rectifier for Industrial Applications
Enhance your power circuitry with the high-quality GBPC3501 bridge rectifier. Featuring an integrated heatsink for efficient heat dissipation, it offers surge overload ratings up to 400A and a wide operating temperature from -55°C to 150°C. Its solderable terminals comply with MIL-STD-202, method 208, and it withstands high temperature soldering at 260°C. With over 2500V isolation voltage, it’s ideal for industrial, automation, and power supply applications requiring durability, reliability, and efficient power conversion. Secure your supply chain by purchasing online today!
Buy Multicomp Pro GBPC3501 now and experience unmatched reliability and high-current performance for your industrial power needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBPC3501?
You can click on the BUY or RFQ button to purchase GBPC3501 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBPC3501?
You can download the GBPC3501 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBPC3501?
MULTICOMP PRO
