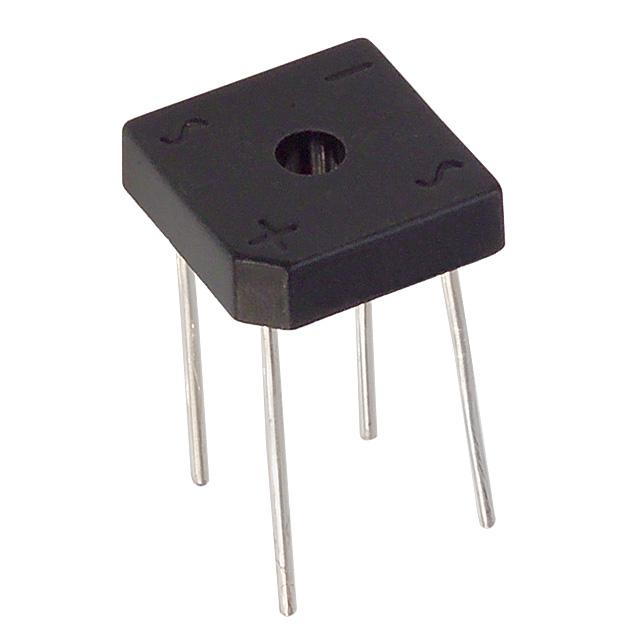

MULTICOMP PRO GBPC3508W Bridge Rectifier
The GBPC3508W is a high-reliability bridge rectifier designed for industrial applications, featuring plastic housing with integrally molded heatsinks for efficient heat dissipation. It supports surge overload ratings from 300 to 400A and has solderable terminals compliant with MIL-STD-202, method 208. With a maximum reverse voltage of 800V and a forward surge current up to 400A, it is suitable for rectifying high-current AC signals. The device operates over a temperature range of -50°C to +150°C, ensuring durability and stable performance in demanding environments.
MULTICOMP PRO GBPC3508W Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 800V
- Maximum RMS Voltage: 560V
- Maximum DC Blocking Voltage: 800V
- Maximum Average Forward Rectified Current: 35A
- Peak Forward Surge Current: 400A
- Forward Voltage Drop at 12.5A: 1.4V
- Maximum Reverse Current: 5mA
- Operating and Storage Temperature Range: -50°C to +150°C
- Junction to Case Thermal Resistance: 1.5°C/W
- Dimensions: Length 0.672 inches (17.1mm), Width 0.432 inches (11mm), Height 0.22 inches (5.59mm), Hole for #10 screw
Buy the Multicomp GBPC3508W – Reliable Bridge Rectifier for Industrial Applications
Order the Multicomp GBPC3508W online today to ensure reliable power rectification in your industrial projects. Designed for high surge and high temperature operation, this bridge rectifier provides a peak reverse voltage of 800V and supports up to 35A of current. Its robust construction with integrally molded heatsinks guarantees efficient heat dissipation, making it ideal for demanding environments. Easy to install with solderable terminals, the GBPC3508W ensures long-lasting performance in power supply, industrial automation, and heavy-duty rectification systems. Purchase now for dependable, long-term operation.
Get Multicomp GBPC3508W today—built for high-current rectification and durability.
