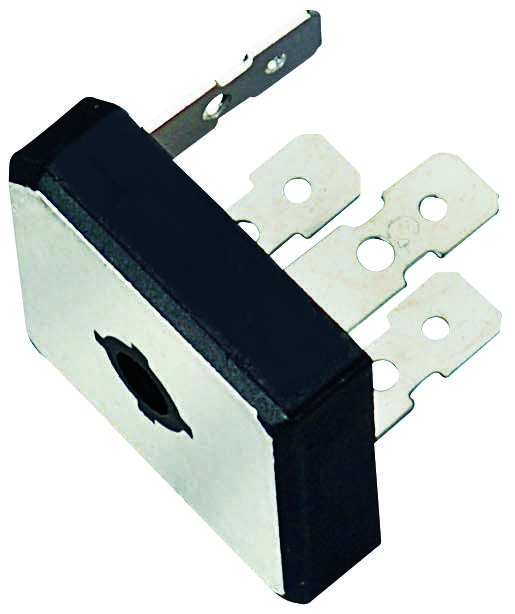

MULTICOMP PRO GBPC3510 Bridge Rectifier
The GBPC3510 is a high-performance single-phase bridge rectifier designed for efficient mains rectification. Encased in a robust plastic body with an integrated molded heatsink, it ensures excellent heat dissipation with a thermal resistance of 1.5°C/W. The device features solderable terminals conforming to MIL-STD-202, method 208, and provides electrical isolation exceeding 2500V from case to lead. It can withstand a maximum RMS voltage of 700V, a DC blocking voltage of 1000V, and a peak surge current of 400A, making it ideal for high-voltage power supply applications.
MULTICOMP PRO GBPC3510 Bridge Rectifier Specifications:
- Maximum RMS voltage: 700V
- Maximum DC blocking voltage: 1000V
- Peak forward surge current: 400A
- Thermal resistance: 1.5°C/W
- Encapsulated in plastic with molded heatsink
- Solderable terminals conforming to MIL-STD-202, method 208
- Electrical isolation exceeding 2500V from case to lead
- Operating temperature range: -50°C to +150°C
- Dimensions: 1.130 inches (28.7 mm) length, 0.661 inches (16.8 mm) width
- Material: Plastic body, solderable metal terminals
Buy the Buy Multicomp Bridge Rectifier Part Number GBPC3510 Online
Order the Multicomp GBPC3510 bridge rectifier online today and enjoy high performance with a maximum RMS voltage of 700V, DC blocking of 1000V, peak surge current of 400A, and efficient heat dissipation. Ideal for mains power supply and high-voltage rectification, this component features a robust plastic body with integrated molded heatsink, solderable terminals conforming to military standards, and electrical isolation exceeding 2500V from case to lead. Ensure reliable circuit operation with this high-quality, easy-to-install rectifier available for quick online purchase.
Buy Multicomp GBPC3510 now and experience unmatched reliability and power handling for your rectification needs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBPC3510?
You can click on the BUY or RFQ button to purchase GBPC3510 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBPC3510?
You can download the GBPC3510 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBPC3510?
MULTICOMP PRO
