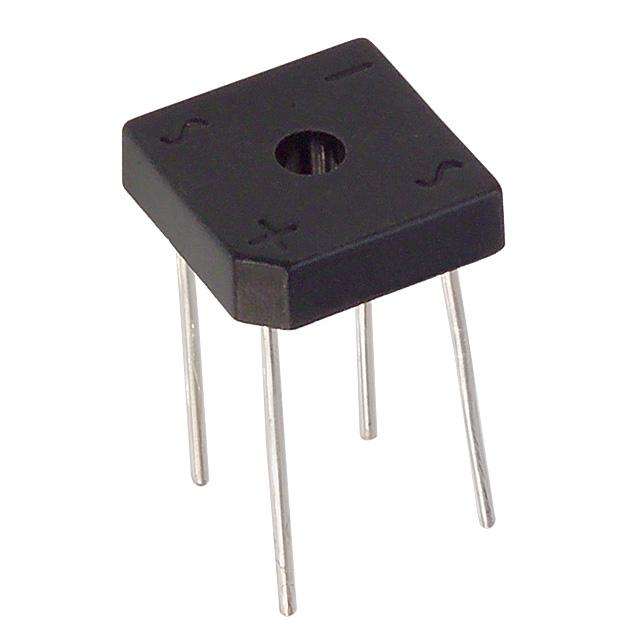

MULTICOMP PRO GBPC3510W Bridge Rectifier
The GBPC series is a range of high-current bridge rectifiers designed for power conversion applications. Constructed with plastic material, these rectifiers feature an integrally molded heatsink for optimal heat dissipation and low thermal resistance. They offer surge overload ratings from 300 to 400A and are solderable per MIL-STD-202, method 208, ensuring reliable wiring connections. With typical reverse current less than 0.2 microamps and high-temperature soldering capabilities at 260°C for 10 seconds, these components are suitable for a wide range of industrial and electronic power systems. They provide isolated voltage from case to lead over 2,500V, making them ideal for AC/DC conversion, rectification, and power regulation.
MULTICOMP PRO GBPC3510W Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage VRRM: 100V to 1,000V
- RMS Voltage Vrms: 70V to 700V
- DC Blocking Voltage Voc: 100V to 1,000V
- Average Forward Rectified Current: 15A to 35A
- Peak Forward Surge Current: 300A to 400A
- Forward Voltage Drop: approximately 1.4V to 1.75V at rated current
- Reverse Current: less than 5mA at rated voltage
- Thermal Resistance: 1.5°C/W from junction to case
- Operating & Storage Temperature Range: -50°C to +150°C
- Dimensions: approximately 0.432 inches (11mm) length, 0.22 inches (5.6mm) height, hole size for #10 screw, suitable for mounting
- Material: Plastic with integrated heatsink, solderable terminals, isolated voltage case to lead over 2,500V
- Soldering Temperature: 260°C for 10 seconds, lead length 0.375 inches (9.5mm)
Buy the Buy Multicomp Pro Bridge Rectifier Part Number GBPC3510W Online
Order the Multicomp Pro GBPC3510W bridge rectifier online today for efficient power conversion and robust performance in industrial and electronic applications. Featuring high surge overload ratings up to 400A, an integrated heatsink for excellent heat dissipation, and an isolated voltage capability exceeding 2,500V, this component ensures reliable operation under demanding conditions. Easy to solder on with high-temperature soldering guarantees, it is ideal for power rectification, AC/DC conversion, and power supply systems. Secure your electronic projects with this dependable high-current rectifier available now online.
Buy Multicomp Pro GBPC3510W now and experience unmatched reliability and performance for high-current power rectification.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBPC3510W?
You can click on the BUY or RFQ button to purchase GBPC3510W from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBPC3510W?
You can download the GBPC3510W datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBPC3510W?
MULTICOMP PRO
