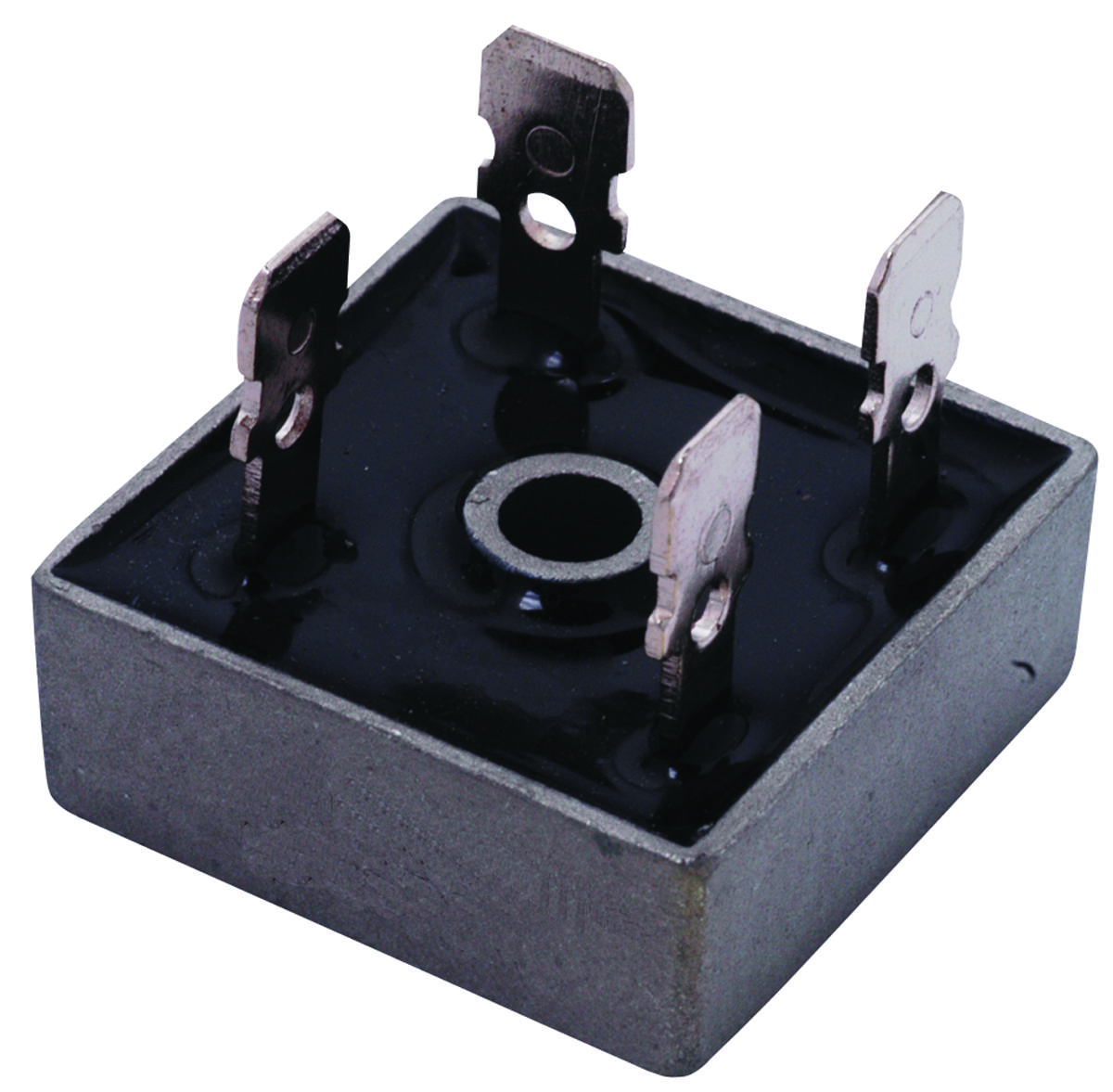

MULTICOMP PRO GBPC5004 Bridge Rectifier
The GBPC5004 is a high-current bridge rectifier designed for efficient power conversion in industrial and electronic applications. It features a plastic housing with an integrally molded heatsink, ensuring excellent heat dissipation and low thermal resistance. This rectifier supports solderable terminals compliant with MIL-STD-202, method 208, and can endure high-temperature soldering up to 260°C for 10 seconds. With a maximum repetitive peak reverse voltage of 400V, RMS input voltage of 280V, and a forward surge current of 450A, it provides reliable performance across a wide temperature range from -55°C to +150°C. Its robust design and electrical ratings make it suitable for single-phase rectification in resistive or inductive loads, with derating for capacitive loads.
MULTICOMP PRO GBPC5004 Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage VRRM: 400V
- Maximum RMS Bridge Input Voltage VeRMs: 280V
- Maximum DC Blocking Voltage VDC: 400V
- Maximum Average Forward Rectified Output Current at Tc = 50°C: 50A
- Peak Forward Surge Current 8.3 ms: 450A
- Maximum Forward Voltage Drop at 17.5A DC: 1.4V
- Maximum DC Reverse Current at 100°C: 500μA
- Operating Temperature Range: -55°C to +150°C
- Isolated voltage from case to lead: over 2500V
- Soldering Temperature: up to 260°C for 10 seconds
- Package: Plastic with integrally molded heatsink
- Terminals: Solderable per MIL-STD-202, method 208
- Application: Single-phase power rectification, resistive or inductive loads
Buy the Multicomp Series GBPC5004 Bridge Rectifier: 400V 50A
Purchase the Multicomp Series GBPC5004 bridge rectifier online today and experience reliable, high-capacity power conversion for industrial and electronic applications. Designed with a robust plastic housing and integrated heatsink, this rectifier offers excellent thermal management, supporting a maximum repetitive peak reverse voltage of 400V and a forward surge current of 450A. It features solderable terminals compliant with MIL-STD-202, ensuring secure connections. Suitable for single-phase loads, its wide operating temperature range and high durability make it ideal for power supplies, motor drives, and rectification tasks requiring dependable performance and heat dissipation. Order now for efficient power management!
Get Multicomp Series GBPC5004 today—built for high-current industrial power rectification and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBPC5004?
You can click on the BUY or RFQ button to purchase GBPC5004 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBPC5004?
You can download the GBPC5004 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBPC5004?
MULTICOMP PRO
