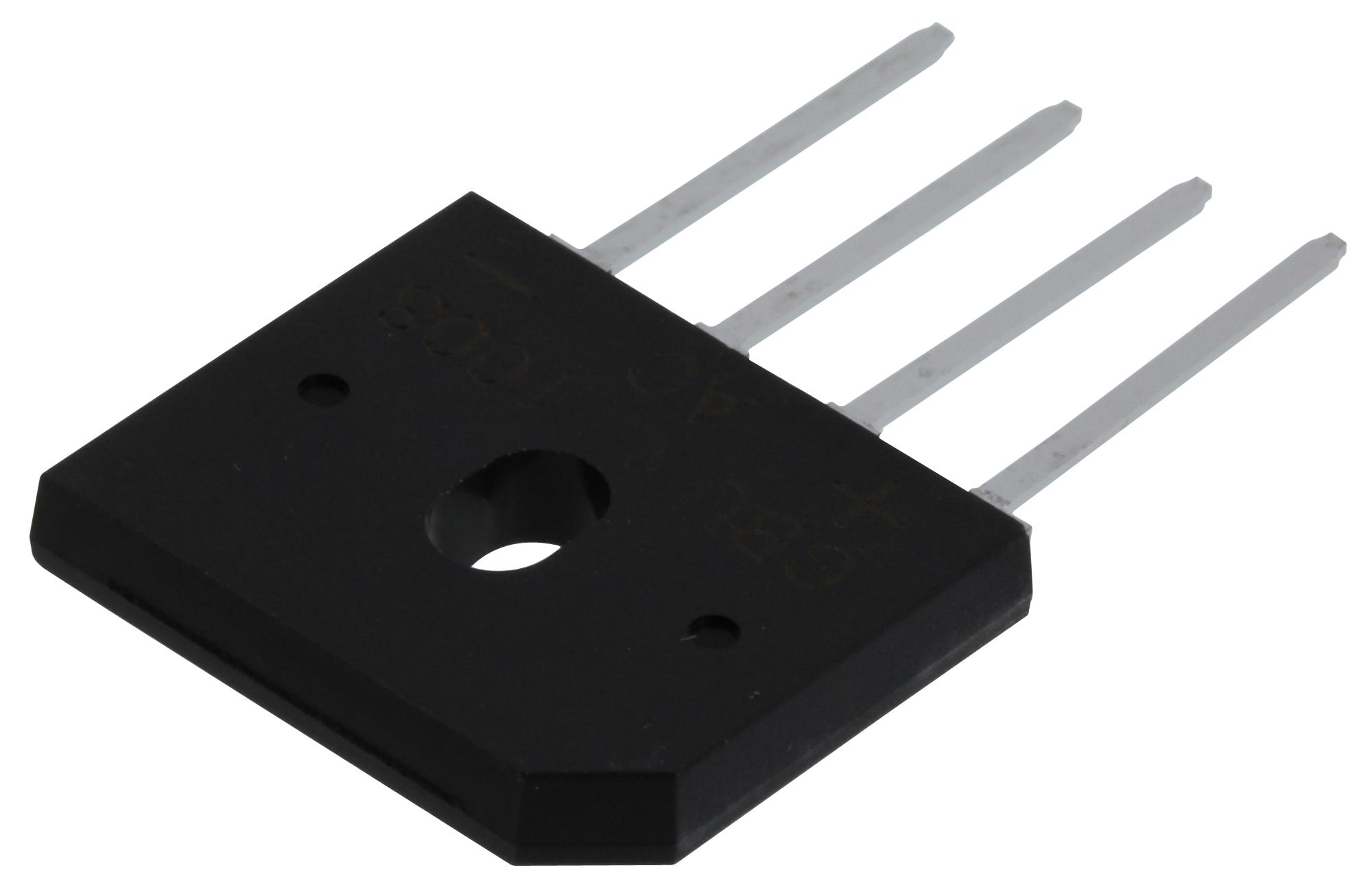

MULTICOMP PRO GBU1008 Bridge Rectifier
This high-quality glass passivated bridge rectifier is designed for efficient power conversion in industrial applications. Capable of withstanding peak surge currents of 220 amperes, it features a reverse voltage rating of 800V for GBU1008 and 1000V for GBU1010. Suitable for printed circuit board mounting, it offers reliable performance with low forward voltage and high surge capability. The device operates within temperatures from -55°C to +150°C, ensuring durability in demanding environments. Its UL 94V-0 flammability rated plastic casing guarantees safety and long-term reliability in industrial setups.
MULTICOMP PRO GBU1008 Bridge Rectifier Specifications:
- Surge overload rating: 220 amperes peak
- Reverse Voltage: 800V (GBU1008), 1000V (GBU1010)
- Max RMS Voltage: 560V (GBU1008), 700V (GBU1010)
- Max DC Blocking Voltage: 800V (GBU1008), 1000V (GBU1010)
- Average Forward Current: 10 Amperes
- Peak Forward Surge Current: 220A
- Max Forward Voltage at 5A: 1V
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Mounting Position: Any
- Thermal Resistance: 2.2 °C/W
- Package Dimension Approximate: 1.43 x 0.86 inches (36.4 x 21.8 mm)
Buy the Multicomp GBU1008 – Reliable Bridge Rectifier for Industrial Applications
Enhance your power systems with this durable bridge rectifier designed for industrial performance. Capable of handling 10A current and withstanding peak surges of 220A, this rectifier offers reliable, efficient operation with high reverse voltage ratings. Its compact design supports PCB mounting in various environments, operating safely from -55°C to +150°C. Made with UL V-0 rated plastic, the device guarantees safety and compliance. Purchase online now to secure top-quality power conversion components for your industrial projects, ensuring durability and high performance.
Order your multicomp GBU1008 high-current bridge rectifier today and ensure robust, reliable power conversion for your industrial projects.
