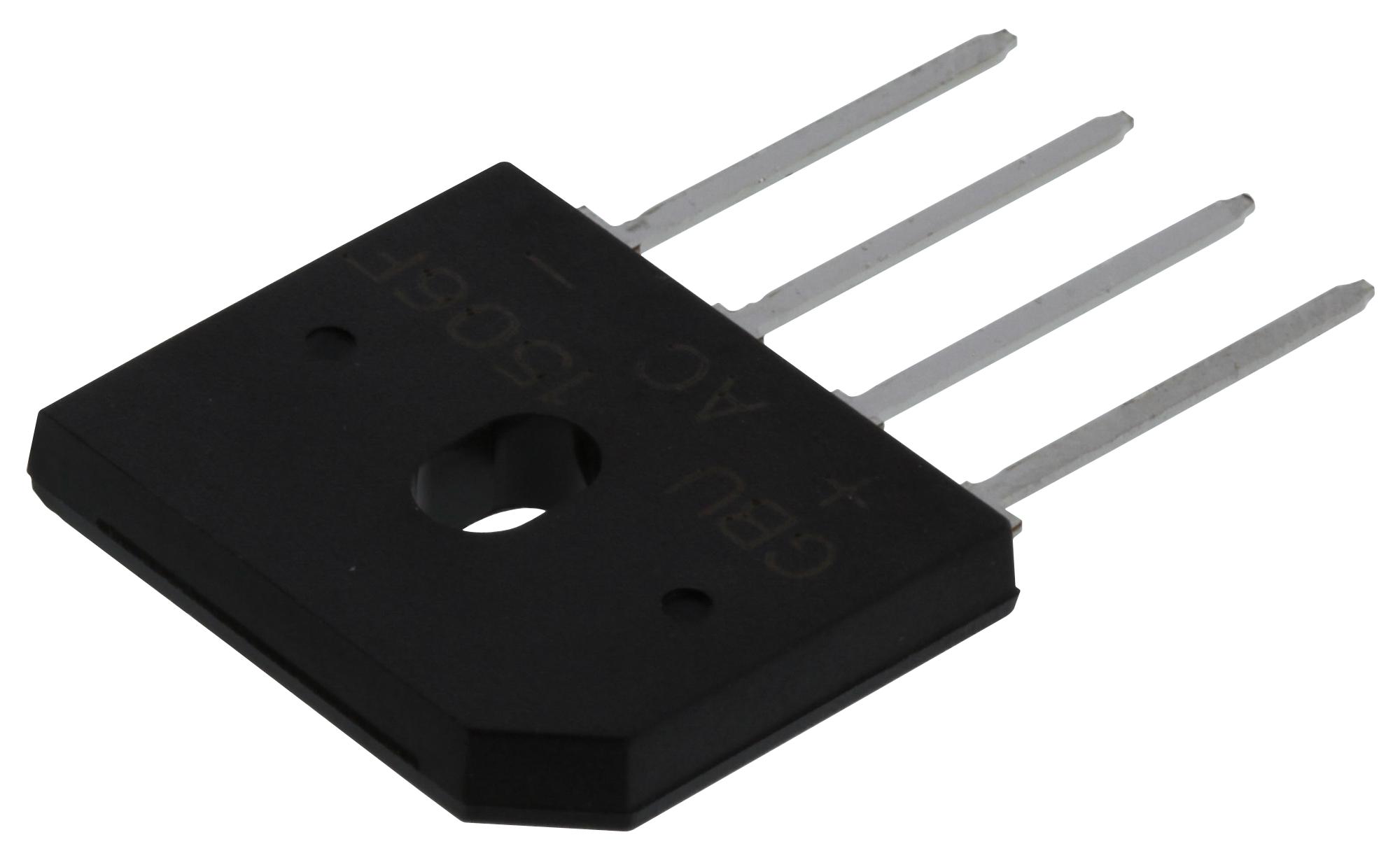

MULTICOMP PRO GBU1506F Bridge Rectifier
This low forward voltage glass passivated bridge rectifier is ideal for converting AC to DC in various power applications. It features robust surge overload capacity of 240 amperes, high peak repetitive reverse voltage of 600 volts, and is suitable for PCB mounting. Its UL 94V-0 flammability-rated plastic housing ensures safety and durability. Capable of handling a maximum average forward current of 15A with a peak surge current of 240A, it performs reliably in circuits with resistive, inductive, or capacitive loads. Operating efficiently from -55°C to +150°C, it is an essential component for power rectification tasks requiring high reliability and efficiency.
MULTICOMP PRO GBU1506F Bridge Rectifier Specifications:
- Maximum Recurrent Peak Reverse Voltage: 600V
- Maximum RMS Voltage: 420V
- Maximum DC Blocking Voltage: 600V
- Maximum Average Forward Current: 15A
- Peak Forward Surge Current: 240A (8.3ms single half sine-wave)
- Maximum Forward Voltage at 7.5A: 0.95V
- Maximum Reverse Current at 25°C: 10A
- Temperature Range: -55°C to +150°C
- Dimensions: 126(3.2) x 45° mm, passivated construction, ceramic package
- Operating Frequency: 60Hz, resistive or inductive load
- Storage Temperature Range: -55°C to +150°C
- Material: Glass passivated, plastic housing UL 94V-0
- Mounting: Any position
Buy the Multicomp Pro GBU1506F – Reliable Bridge Rectifier for Industrial Applications
Order the Multicomp Pro GBU1506F bridge rectifier online today to ensure high reliability in your power supply circuits. This component offers a 600V maximum voltage, 15A continuous current, and surge capacity of 240A, ideal for both resistive and reactive loads. Its robust construction and UL 94V-0 flammability-rated plastic shell provide safety and durability. Perfect for PCB mounting, it operates efficiently across a wide temperature range of -55°C to +150°C. Secure your supply chain and enhance circuit performance by purchasing this essential component now.
Buy Multicomp Pro GBU1506F now and experience unmatched reliability and performance in power rectification with high surge capacity and efficiency.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GBU1506F?
You can click on the BUY or RFQ button to purchase GBU1506F from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GBU1506F?
You can download the GBU1506F datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GBU1506F?
MULTICOMP PRO
