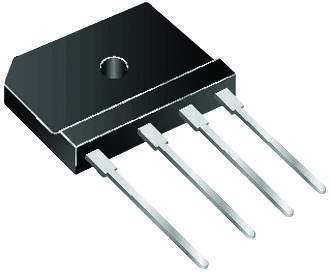

MULTICOMP PRO GSIB1501 Bridge Rectifier
This high-quality bridge rectifier from Multicomp Pro is designed for single-phase applications, supporting reverse voltages up to 1,000V and handling forward currents of 15A. It features glass passivation for enhanced reliability, low forward voltage drop, and a molded plastic construction for cost-effectiveness. Ideal for use in power supplies and industrial equipment, the rectifier ensures stable performance even at high temperatures up to 150°C, with excellent surge current capabilities and minimal junction capacitance for efficiency. Suitable for resistive, inductive, and capacitive loads.
MULTICOMP PRO GSIB1501 Bridge Rectifier Specifications:
- Reverse Voltage: 50 to 1,000 Volts
- Forward Current: 15 Amperes
- Max. RMS Voltage: 35 to 700 V
- Max. DC Blocking Voltage: 50 to 1000 V
- Max. Forward Surge Current: 240 A at 8.3 ms
- Typical Junction Capacitance: 80 pF
- Thermal Resistance: 0.8 °C/W
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Dimensions: approximately 0.8 x 0.6 inches (22 x 15 mm)
Buy the Multicomp Series Bridge Rectifiers: GSIB1501
Purchase the Multicomp Pro GSIB1501 bridge rectifier online and enjoy reliable, high-performance power conversion for industrial, electronic, and power supply applications. With a maximum reverse voltage of 1,000V and a forward current of 15A, this product is ideal for resistive, inductive, and capacitive loads. Its glass passivation enhances durability, while the molded plastic construction keeps costs low and supports high-temperature operation up to 150°C. Ensure your project’s success by choosing quality, efficiency, and robustness with this trusted rectifier.
Get Multicomp Pro GSIB1501 today—built for high efficiency and reliable performance in power conversion projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO GSIB1501?
You can click on the BUY or RFQ button to purchase GSIB1501 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part GSIB1501?
You can download the GSIB1501 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of GSIB1501?
MULTICOMP PRO
