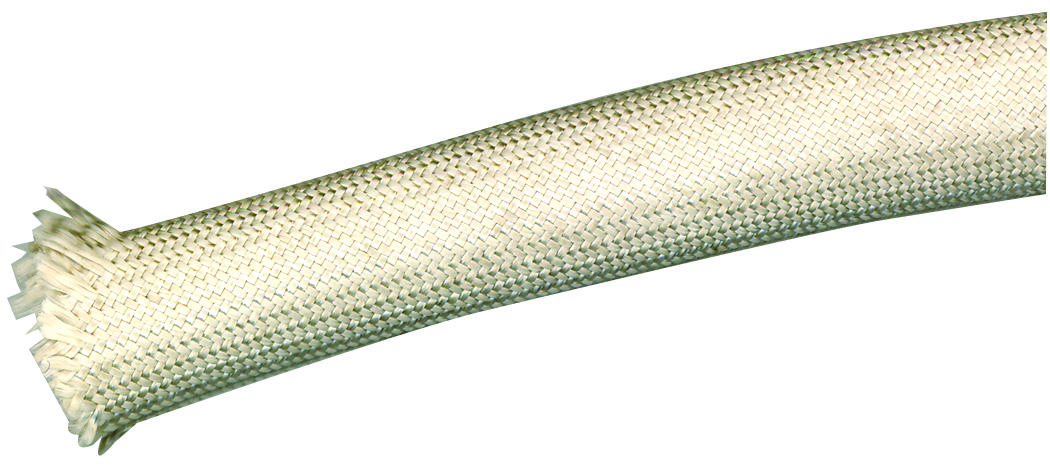

MULTICOMP-PRO GSX0481100NAT High-Temperature Fiberglass Sleeving
The GSX-048-1100-NAT is a heat-treated insulating fiberglass sleeving tube. Made from tightly braided fiberglass, it is designated for Class 240°C insulation and has been heat annealed to remove organic impurities for better handling. The tan-colored, high-temperature resin dye enhances fray resistance and provides firmness for easy cutting and installation. This tubing is suitable for primary insulation in low-voltage applications such as appliance leads in toasters, hot plates, hand irons, coffee makers, and other devices operating at high temperatures. It can withstand temperatures up to 648°C (1,200°F). Additionally, it is used in vacuum pressure impregnation of stators and rotors, especially in heavy wall versions on coil ends and leads.
MULTICOMP-PRO GSX0481100NAT High-Temperature Fiberglass Sleeving Specifications:
- Material: Braided fiberglass
- Insulation Class: 240°C
- Temperature Resistance: Up to 648°C (1,200°F)
- Heat Treatment: Annealed to remove organic impurities
- Color: Tan with high-temperature resin dye
- Wall Thickness: Standard
- Maximum Inside Diameter: 9.53 mm (0.375 inches)
- Maximum Outer Diameter: 10.13 mm (0.399 inches)
- Length: 100 feet spool
- Humidity Resistance: Non-Corrosive, Fungus Resistant
- Operating Temperature Range: -60°C to 648°C
- Application: Electrical insulation, protection of high-temperature components, vacuum impregnation in motor stators and rotors
Buy the Multicomp GSX-048-1100-NAT – Reliable High-Temperature Fiberglass Insulation for Industrial Applications
Order the Multicomp GSX-048-1100-NAT fiberglass sleeving online today to benefit from superior heat resistance, excellent fray resistance, and easy installation. Perfect for protecting electrical components in high-temperature environments, this heavy wall fiberglass tubing withstands temperatures up to 648°C. Its heat-treated, braid design ensures durability, flexibility, and longevity. Whether for appliance leads like toasters and coffee makers, or motor coil impregnation, this versatile insulation material enhances safety and performance. Buy online now for fast delivery and premium quality assurance.
Buy Multicomp GSX-048-1100-NAT heat-treated fiberglass sleeving now and ensure durable, high-quality insulation for your high-temperature electrical needs.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO GSX0481100NAT?
You can click on the BUY or RFQ button to purchase GSX0481100NAT from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part GSX0481100NAT?
You can download the GSX0481100NAT datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of GSX0481100NAT?
MULTICOMP-PRO
