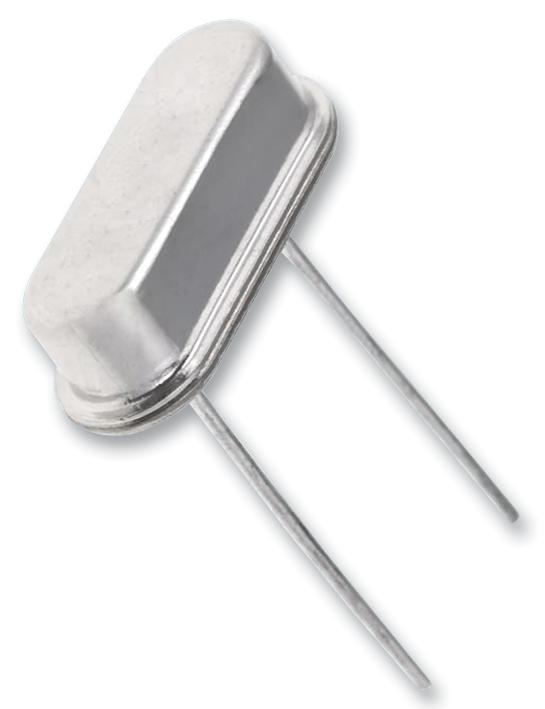

MULTICOMP PRO HC49S11059230507030ATF Crystal Oscillator
This high-quality crystal oscillator is ideal for clock, timing, and communication applications. Manufactured by Multicomp Pro, it features a wide frequency range from 10 to 70 MHz, known for accuracy and stability within ±50ppm. Its compact, ultra-thin ceramic package with a maximum height of 1.4mm ensures suitability for space-constrained designs. The crystal offers low drive levels of 100uW to 200uW, with rated insulation resistance of 500MΩ at 100V DC, and a temperature stability of ±50ppm. Designed for reliable performance, it is perfect for microcontrollers and industrial equipment, supplied taped and reeled for easy surface-mount assembly.
MULTICOMP PRO HC49S11059230507030ATF Crystal Oscillator Specifications:
- Nominal Frequency Range: 10 to 70 MHz
- Vibration Mode: Fundamental and 3rd Overtone (AT)
- Frequency Tolerance at 25°C: +20, +30 or +50ppm
- Temperature Stability: ±50ppm
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -30°C to +80°C
- Load Capacitance: 8pF to 32pF or series
- Equivalent Series Resistance: See ESR table below
- Shunt Capacitance: 7pF maximum
- Drive Level: 100uW maximum
- Insulation Resistance: 500MΩ minimum at 100V DC
- Aging: +5ppm per year
Buy the Multicomp Series Crystals: 10 to 70 MHz Oscillator HC49S11059230507030ATF
Order the Multicomp crystal oscillator HC49S11059230507030ATF online today to ensure your timing and clock circuits operate with high accuracy and stability. This surface-mount device features a compact ultra-thin ceramic package, ideal for designs where space is limited. With wide frequency coverage from 10 to 70 MHz, low drive levels, and a robust insulation resistance, it delivers reliable performance across temperature ranges of -20°C to +70°C. Taped and reeled for easy assembly, it's perfect for microcontrollers, industrial applications, or communication equipment requiring precise clock signals.
Buy Multicomp crystal oscillator HC49S11059230507030ATF now and experience unmatched reliability and precision for timing projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HC49S11059230507030ATF?
You can click on the BUY or RFQ button to purchase HC49S11059230507030ATF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HC49S11059230507030ATF?
You can download the HC49S11059230507030ATF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HC49S11059230507030ATF?
MULTICOMP PRO
