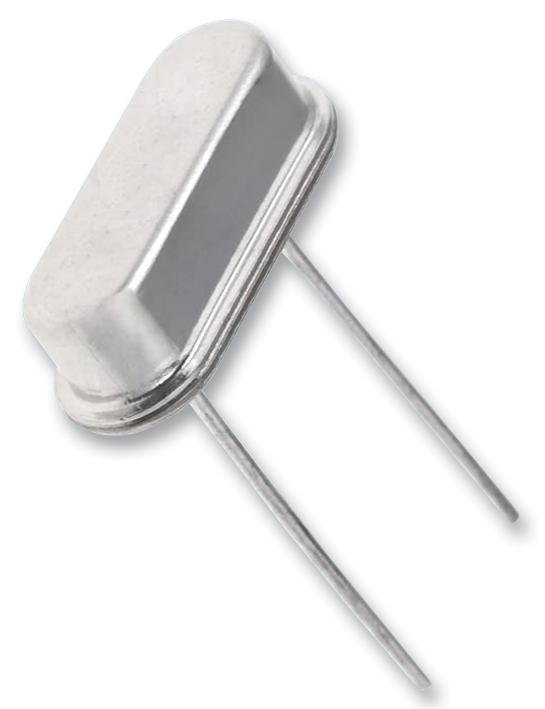

MULTICOMP PRO HC49S630506030ATF Crystal Oscillator
The Multicomp Pro HC49S630506030ATF is an ultra-thin, surface-mount crystal designed for clock, microcontroller, and communication applications. It features a frequency range of 10 to 30 MHz with +20, +30, or +50 ppm tolerance at 25°C, and operates reliably within -20°C to +70°C. Its low-profile 1.4mm height, high quality ceramic package, and resistance weld HC49/4H metal case make it ideal for space-constrained designs. The crystal offers stable performance with a maximum ESR specified in its ESR table and is supplied taped and reeled for automated assembly.
MULTICOMP PRO HC49S630506030ATF Crystal Oscillator Specifications:
- Frequency Range: 10 to 30 MHz
- Tolerance at 25°C: +20, +30, or +50 ppm
- Temperature Stability: +30 or +50 ppm
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -30°C to +80°C
- Load Capacitance: 8pF to 32pF or series
- Equivalent Series Resistance: See ESR table
- Shunt Capacitance: 7pF maximum
- Drive Level: 100uW maximum
- Insulation Resistance: 500MQ at 100V DC
- Aging: ±5 ppm per year
- Vibration Mode: Fundamental (AT)
- Dimensions: 1.4mm height, compact ceramic package
- RoHS Compliant
- Supplied taped and reeled
Buy the Multicomp Series Crystal: HC49S630506030ATF
Purchase the Multicomp Series Crystal HC49S630506030ATF online today for high reliability and space-saving design in your clock and microcontroller circuits. This surface-mount crystal is ideal for applications requiring a low-profile form factor with a frequency range of 10 to 30 MHz, offering tolerance options of +20, +30, or +50 ppm. With a maximum ESR and stable performance across -20°C to +70°C, this RoHS-compliant crystal ensures precision timing. Taped and reeled for easy automated assembly, it provides a reliable, cost-effective solution for electronics manufacturers seeking quality and compactness.
Order your Multicomp Series Crystal HC49S630506030ATF today and give your projects the dependable timing solution they need for space-constrained designs.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HC49S630506030ATF?
You can click on the BUY or RFQ button to purchase HC49S630506030ATF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HC49S630506030ATF?
You can download the HC49S630506030ATF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HC49S630506030ATF?
MULTICOMP PRO
