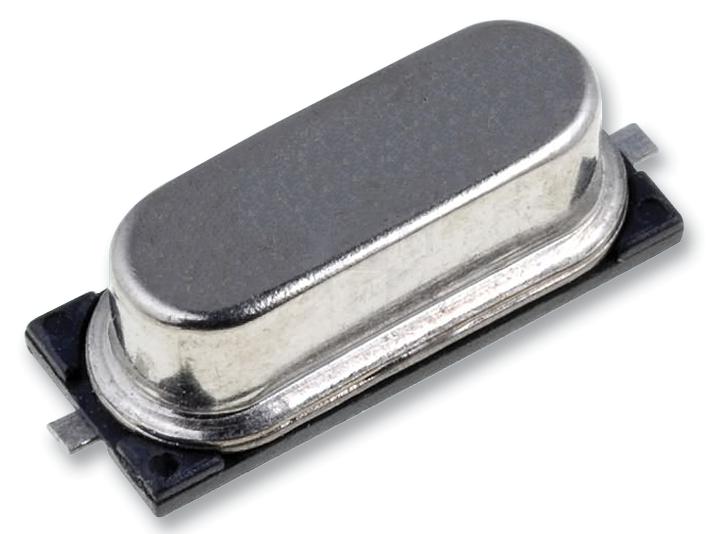

MULTICOMP PRO HC49SM3686430506016ATF Crystal Oscillator
The HC49SM-3.6864-30-50-60-16-ATF is a low-profile surface-mount crystal with dimensions 11.4 x 4.65 mm, designed for space-constrained projects. It features an AT-cut fundamental mode, load capacitance of 16 pF, and a frequency tolerance of ±30 ppm. The rugged aluminum case, with resistance welds, ensures durability. Operating over -20°C to +70°C, it offers an insulation resistance of 500 MΩ, an aging rate of ±5 ppm/year, and ESR of 150 Ω, suitable for industrial, microcontroller, and timing applications.
MULTICOMP PRO HC49SM3686430506016ATF Crystal Oscillator Specifications:
- Dimensions: 11.4 x 4.65 mm
- Nominal Frequency: 3.6864 MHz
- Frequency Tolerance at 25°C: ±30 ppm
- Temperature Range: -20°C to +70°C
- Load Capacitance: 16 pF
- Insulation Resistance: 500 MΩ at 100 V DC
- Aging: ±5 ppm per year
- Equivalent Series Resistance: 150 Ω
- Vibration Mode: Fundamental (AT)
- Case Material: Metal with resistance weld
- Maximum Operating Temperature: +70°C
- Maximum Storage Temperature: +80°C
Buy the Multicomp Series Crystal: 3.6864 MHz: HC49SM3686430506016ATF
Purchase the multicomp series crystal HC49SM3686430506016ATF online today and enjoy dependable performance for your microcontroller, industrial, and timing applications. This rugged, high-quality SMD crystal features a compact metal case, a stable AT-cut fundamental mode, and a load capacitance of 16 pF, making it ideal for space-constrained projects. With a frequency tolerance of ±30 ppm, aging of just ±5 ppm/year, and an operating temperature range of -20°C to +70°C, it offers long-term stability and durability for critical timing and frequency reference needs.
Order your multicomp series crystal HC49SM3686430506016ATF today and ensure precise, reliable timing for your industrial and microcontroller projects.
