MULTICOMP PRO HC49SM430506016ATF Crystal Oscillator
The HC49SM-4-30-50-60-16-ATF is a surface-mount crystal measuring 11.4 x 4.65 mm, designed for applications requiring low profile and space efficiency. It offers 30 and 50 ppm frequency stability, with a superior resistance weld metal case. This crystal operates in the fundamental vibration mode and features a maximum equivalent series resistance of 120 ohms, a maximum shunt capacitance of 5 pF, and a minimum insulation resistance of 500 megaohms at 100 VDC. It is suitable for clock and timing, industrial, and communication and networking applications.
MULTICOMP PRO HC49SM430506016ATF Crystal Oscillator Specifications:
- Nominal Frequency Range: 10 to 30 MHz or 30 to 60 MHz
- Vibration Mode: Fundamental (AT) or 3rd Overtone (AT)
- Frequency Tolerance at 25°C: +20, +30, or +50 ppm
- Temperature Stability: +30 or +50 ppm
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -30°C to +80°C
- Load Capacitance: 8 pF to 32 pF or series
- Equivalent Series Resistance: Max 120 ohms
- Shunt Capacitance: 5 pF maximum
- Drive Level: 100 µW maximum
- Insulation Resistance: Minimum 500 megaohms at 100 VDC
- Dimensions: 11.4 x 4.65 mm, Low profile, 4 mm height
- Material: Ceramic package
- Features: Surface-mount, RoHS compliant, resistance weld metal case

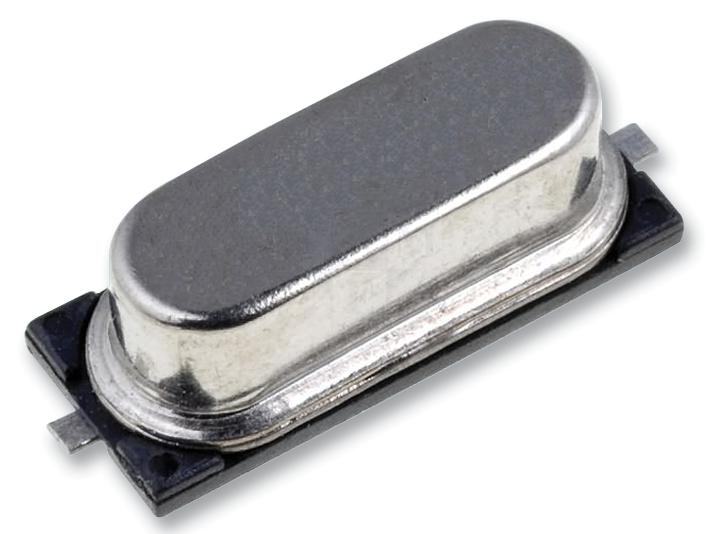

Buy the Buy multicomp Crystal Part Number HC49SM430506016ATF Online
Purchase the multicomp Crystal Oscillator HC49SM430506016ATF online for high-quality, space-efficient timing solutions perfect for industrial, communication, and networking equipment. This surface-mount crystal features a low profile design with 30-50 ppm stability, operating in fundamental vibration mode. It offers excellent resistance weld case, high insulation resistance, and is RoHS compliant. Ideal for applications demanding precise frequency control, this crystal ensures stable, accurate oscillation essential for microcontrollers and timing circuits. Order now to enhance your electronic designs with proven reliability and performance.
Order your multicomp SeriesHC49SM430506016ATF crystal today and ensure reliable clock and timing performance for industrial and communication projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HC49SM430506016ATF?
You can click on the BUY or RFQ button to purchase HC49SM430506016ATF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HC49SM430506016ATF?
You can download the HC49SM430506016ATF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HC49SM430506016ATF?
MULTICOMP PRO
