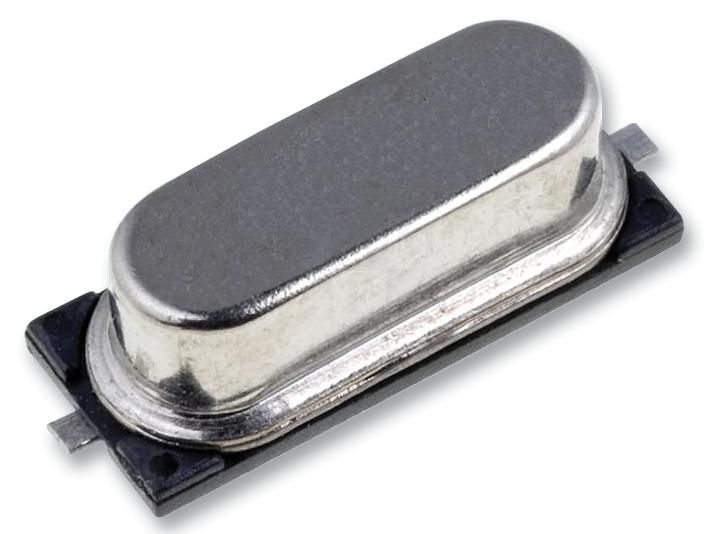

MULTICOMP PRO HC49SM630506030ATF Surface Mount Crystal
The HC49SM-6-30-50-60-30-ATF is a surface-mount crystal measuring 11.4 x 4.65 mm, designed for low-profile applications with high precision. It features 30 and 50 ppm frequency stability, is built with a durable weld metal case, and operates in the fundamental vibration mode. This crystal is suitable for applications where board height is critical, such as microcontrollers, industrial systems, and communication networks. It has a maximum equivalent series resistance of 80Ω, a maximum shunt capacitance of 5pF, and a minimum insulation resistance of 500MΩ at 100VDC. Multicomp Pro offers this product with a 12-month limited warranty, and 96% of customers recommend it for their timing and clock applications.
MULTICOMP PRO HC49SM630506030ATF Surface Mount Crystal Specifications:
- Nominal Frequency Range: 3.5 to 32 MHz
- Vibration Mode: Fundamental (AT), 3rd Overtone (AT)
- Frequency Tolerance at 25°C: +20, +30 or +50 ppm
- Temperature Stability: +30 ppm or +50 ppm
- Operating Temperature Range: -10°C to +60°C or -20°C to +70°C
- Storage Temperature Range: -20°C to +70°C or -30°C to +80°C
- Load Capacitance: 8 pF to 32 pF or series
- Equivalent Series Resistance: Max 80Ω
- Shunt Capacitance: 5pF maximum
- Drive Level: 200μW maximum (<5 MHz), 100μW maximum (>5 MHz)
- Insulation Resistance: 500MΩ minimum at 100V DC
- Aging: +5 ppm per year
- Dimensions: 11.4 x 4.65 mm
- Case Material: Weld metal case
- Frequency Stability: 30 and 50 ppm options
- Applications: Microcontrollers, industrial systems, communication networks
- Supply Mode: Surface-mount, low profile
Buy the Buy Multicomp Pro Crystal Part Number HC49SM630506030ATF Online
Purchase the Multicomp Pro surface-mount crystal HC49SM630506030ATF online today to guarantee high accuracy and stability in your low-profile designs. Designed with a durable weld metal case and ideal for board height-sensitive applications, this crystal offers a frequency stability of 30 to 50 ppm, fundamental vibration mode, and low equivalent series resistance of up to 80Ω. Its compact size of 11.4 by 4.65 mm makes it perfect for microcontrollers, industrial automation, and communication devices, backed by a 12-month warranty and a high customer recommendation rate.
Order your Multicomp Pro Crystal HC49SM630506030ATF today and ensure precise timing for microcontrollers and communication systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HC49SM630506030ATF?
You can click on the BUY or RFQ button to purchase HC49SM630506030ATF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HC49SM630506030ATF?
You can download the HC49SM630506030ATF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HC49SM630506030ATF?
MULTICOMP PRO
