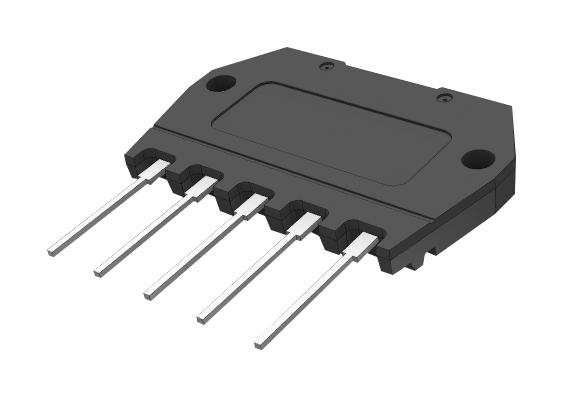

MULTICOMP PRO HGBJ2510 3 Phase Bridge Rectifier
The HGBJ2510 is a high-reliability glass passivated three-phase bridge rectifier designed for industrial power supply applications, including DC equipment and PWM converters. Featuring a peak repetitive voltage of 1,000V and a maximum average forward rectified current of 25A at 110°C, it offers low forward voltage drop, high insulation voltage of 2,500V, and robust thermal characteristics. Its compact size and lightweight build make it suitable for efficient, high-performance industrial power management. Suitable for use in various rectification and power conversion systems, it ensures dependable operation under demanding conditions.
MULTICOMP PRO HGBJ2510 3 Phase Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 1,000V
- Peak Non-Repetitive Reverse Voltage VrsM: 1,100V
- Maximum Average Forward Rectified Current: 25A at Tc = 110°C
- Peak Forward Surge Current: 350A (t=8.3ms at 60Hz)
- Maximum Forward Voltage Drop: 12.5V at Vr
- Reverse Peak Current: 3mA at VrrM @ Ts = 150°C
- Insulation Voltage Case to Lead Viso: 2,500V
- Thermal Resistance Resc: 0.8 °C/W
- Operating Temperature Range: -55°C to +150°C
- Weight: 10g
- Dimensions: 1.874 inches (47.6mm) x 0.689 inches (17.5mm) x 0.304 inches (7.72mm)
- Mounting Torque: 0.8 N·m
- Material: Glass passivated chip for high reliability
Buy the Multicomp 2510 – Reliable 3-Phase Bridge Rectifier for Industrial Applications
Buy the multicomp 2510 three-phase bridge rectifier online today to upgrade your industrial power systems with a reliable, high-performance component. Designed for power supplies, DC equipment, and PWM converters, this rectifier offers a peak voltage of 1,000V, a current capacity of 25A, and high insulation voltage of 2,500V. Its compact size, lightweight design, and robust thermal characteristics make it perfect for demanding industrial environments. Secure your power management needs with this dependable rectifier—order now for fast delivery and seamless integration into your systems.
Order your multicomp 2510 series high-reliability 3-phase bridge rectifier today and ensure efficient, dependable power conversion for your industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HGBJ2510?
You can click on the BUY or RFQ button to purchase HGBJ2510 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HGBJ2510?
You can download the HGBJ2510 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HGBJ2510?
MULTICOMP PRO
