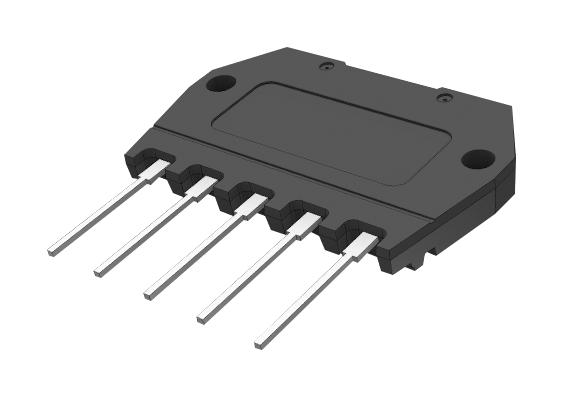

MULTICOMP PRO HGBJ2512 Bridge Rectifier
The HGBJ2512 is a glass passivated three-phase bridge rectifier designed for high reliability power conversion applications. It features a low forward voltage drop, insulation voltage of 2,500V, small size, and lightweight construction. The device operates within a temperature range of -55°C to +150°C and supports a maximum average forward rectified current of 25A at 110°C. Its robust construction makes it suitable for power supply of DC equipment, PWM converter input rectification, and DC motor control, ensuring dependable performance in demanding industrial settings.
MULTICOMP PRO HGBJ2512 Bridge Rectifier Specifications:
- Peak Repetitive Voltage VRRM: 800V, 1,000V, 1,200V, 1,600V
- Peak Non-Repetitive Reverse Voltage VrsM: 900V, 1,100V, 1,300V, 1,700V
- Maximum Average Forward Current: 25A at Tc=110°C
- Peak Forward Surge Current: 350A at 8.3ms
- Forward Voltage Drop: 1.4V at Vr
- Reverse Peak Current: 5pA at Vr=VrrM, 3mA at 150°C
- Isolation Voltage: 2,500V
- Thermal Resistance: 0.8°C/W
- Operating Temperature Range: -55°C to +150°C
- Dimensions: 1.874 in (47.6 mm) x 0.689 in (17.5 mm) x 0.304 in (7.72 mm), lightweight at 10 g
- Mounting torque: 0.8 N·m
Buy the Multicomp 2512 – Reliable Bridge Rectifier for Industrial Applications
Purchase the multicomp 2512 bridge rectifier online now for your power supply needs. Designed with high reliability, low forward voltage, and high insulation voltage, it’s ideal for industrial applications including motor control and PWM converters. Its robust construction supports operation up to 150°C, providing dependable performance and efficient heat dissipation. Lightweight at only 10 grams, this compact rectifier ensures easy installation and long-lasting service life. Enhance your power systems today with this world-class, high-performance bridge rectifier available for immediate online ordering.
Order your multicomp 2512 high-current bridge rectifier today and ensure reliable power conversion for your industrial projects and power supplies.
Frequently Asked Questions
Where can I buy MULTICOMP PRO HGBJ2512?
You can click on the BUY or RFQ button to purchase HGBJ2512 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part HGBJ2512?
You can download the HGBJ2512 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of HGBJ2512?
MULTICOMP PRO
