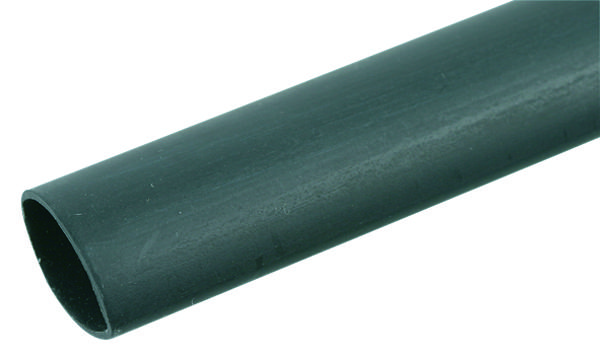

MULTICOMP-PRO HS5185M Heat Shrink Tubing
This flexible, flame-retardant heat-shrink tubing is made from polyolefin, manufactured to AMS-DTL-23053/5 Class 1 standards. It offers excellent wear resistance and a high shrink ratio of 3:1, suitable for protecting irregular or complex shapes. Operating within -55°C to 125°C, it shrinks at a minimum of 70°C and fully recovers at 120°C. The black tubing meets Sony-SS-00259, provides good mechanical and electrical performance, and is ideal for industrial applications requiring quick, reliable insulation and protection of wires and components.
MULTICOMP-PRO HS5185M Heat Shrink Tubing Specifications:
- Material: Halogen-free, radiation cross-linked polyolefin
- Color: Black
- Shrink Ratio: 3:1
- Operating Temperature Range: -55°C to +125°C
- Minimum Shrink Temperature: +70°C
- Full Recovery Temperature: +120°C
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Longitudinal Shrinkage: 45%
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21 x 10^14 Ocm
- Flammability: FMVSS302 Pass
- Meets: Sony-SS-00259
- Standards: AMS-DTL-23053/5 Class 1
- Temperature Resistance: up to 125°C
- Color: Black
- Length Options: 1.22 m and 5 m
Buy the Farnell HS5185M – Reliable Heat Shrink Tubing for Industrial Applications
Order Farnell HS5185M heat shrink tubing online today and enjoy fast delivery, exceptional durability, and superior electrical insulation. Designed for high-performance industrial applications, this polyolefin tubing offers a 3:1 shrink ratio, excellent flexibility, and operates from -55°C to 125°C. Its flame-retardant properties and compliance with standards like Sony-SS-00259 make it perfect for wire and cable protection, especially where quick, reliable insulation is essential. Protect your components effectively with this versatile, high-quality heat-shrink solution.
Buy Farnell HS5185M heat shrink tubing now and experience unmatched flexibility, temperature resistance, and mechanical protection for your industrial wires.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO HS5185M?
You can click on the BUY or RFQ button to purchase HS5185M from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part HS5185M?
You can download the HS5185M datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of HS5185M?
MULTICOMP-PRO
