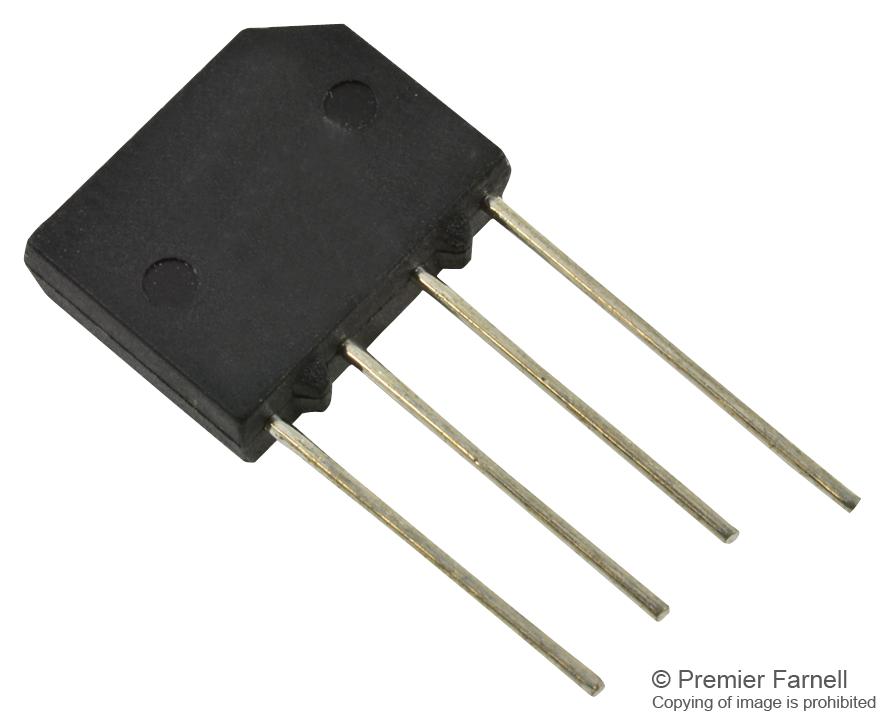

MULTICOMP PRO KBP206G Bridge Rectifier
The KBP206G is a glass passivated bridge rectifier designed for printed circuit board applications. It features a maximum RMS input voltage of 420V, a maximum DC blocking voltage of 600V, and a peak forward surge current of 60A. The device exhibits a maximum reverse current of 10 microamperes at 600V. Suitable for mains rectification, this bridge rectifier can be mounted in any position. Multicomp Pro products, including this rectifier, are rated 4.6 out of 5 stars and come with a 12-month limited warranty. Approximately 96% of customers would recommend this product to a friend.
MULTICOMP PRO KBP206G Bridge Rectifier Specifications:
- Maximum RMS input voltage: 420V
- Maximum DC blocking voltage: 600V
- Peak forward surge current: 60A
- Maximum reverse current at 600V: 10 microamperes
- Forward voltage drop: 1.4V at 2A
- Maximum operating temperature: -55°C to +150°C
- Mounting position: Any
- Material: Glass passivated
- Certification: RoHS compliant
- Peak repetitive reverse voltage VRRM: 600V
- Average rectified current: 2A
- Resistive or inductive load, 60Hz
- Derate current by 20% for capacitive load
Buy the Multicomp KBP206G – Reliable Bridge Rectifier for Industrial Applications
Purchase the Multicomp KBP206G bridge rectifier online today and benefit from its reliable performance in power conversion circuits. Ideal for printed circuit board mounting, this device offers a maximum DC blocking voltage of 600V and a surge overload rating of 60A. With a low reverse current and high surge capacity, it's perfect for mains rectification in various industrial and electronic applications. Enjoy fast delivery, competitive pricing, and excellent support when buying online.
Order your Multicomp Series KBP206G bridge rectifier today and ensure dependable performance for your electrical projects with high surge capacity.
Frequently Asked Questions
Where can I buy MULTICOMP PRO KBP206G?
You can click on the BUY or RFQ button to purchase KBP206G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part KBP206G?
You can download the KBP206G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of KBP206G?
MULTICOMP PRO
