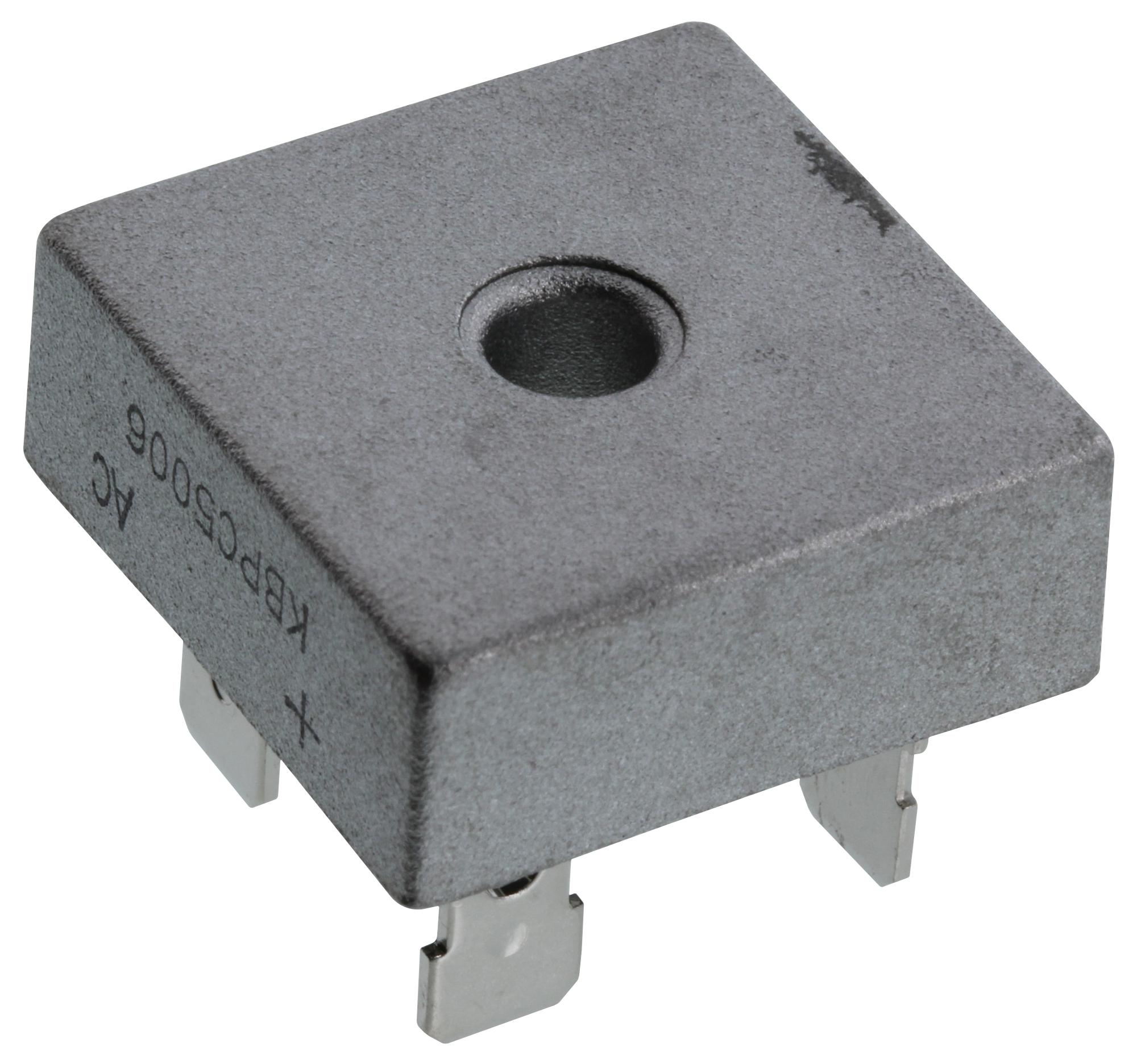

MULTICOMP PRO KBPC5006 Bridge Rectifier
This high-capacity glass passivated bridge rectifier is designed for reliable power conversion in industrial and electronic applications. With a surge overload capacity of 240-500 Amperes peak and a low forward voltage drop, it ensures efficient performance. Features include an electrically isolated base rated at 2000 Volts, solderable 0.25" FAST ON terminals, and UL-recognized materials for safety. Suitable for any mounting position, it handles reverse voltages from 50V to 1000V, supporting continuous operation at elevated temperatures up to 150°C, making it ideal for various rectification needs.
MULTICOMP PRO KBPC5006 Bridge Rectifier Specifications:
- Surge Overload Capacity: 240-500 Amperes peak
- Forward Voltage Drop: 14 V at rated current
- Reverse Voltage Range: 50V to 1000V
- Maximum Forward Current: 10/15/25/35/50 Amperes
- Electrical Isolation: Base rating of 2000 Volts
- Terminals: Solderable 0.25" FAST ON terminals
- Operating Temperature: -55°C to +150°C
- Storage Temperature: -55°C to +150°C
- Mounting: Any position
- Materials: Glass passivated, UL recognized materials
- Dimensions: Various as per model, with mounting hole specifications
- Peak Forward Surge Current: Up to 400-500A depending on model
Buy the Buy Multicomp Passivated Bridge Rectifier Part Number KBPC5006 Online
Purchase your reliable power solution online with the Multicomp Passivated Bridge Rectifier KBPC5006. Designed for industrial applications, it offers surge overload capacity up to 500A, a low forward voltage drop of 14V, and an operating temperature range from -55°C to +150°C. Featuring UL recognized materials and solderable 0.25" FAST ON terminals, this bridge rectifier provides versatile mounting options and robust performance suitable for resistive or inductive loads at various voltages up to 1000V. Order now and enhance your power systems efficiently.
Order your Multicomp Series KBPC5006 high-capacity bridge rectifier today and ensure reliable power conversion with low forward voltage drop and surge overload capacity.
Frequently Asked Questions
Where can I buy MULTICOMP PRO KBPC5006?
You can click on the BUY or RFQ button to purchase KBPC5006 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part KBPC5006?
You can download the KBPC5006 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of KBPC5006?
MULTICOMP PRO
