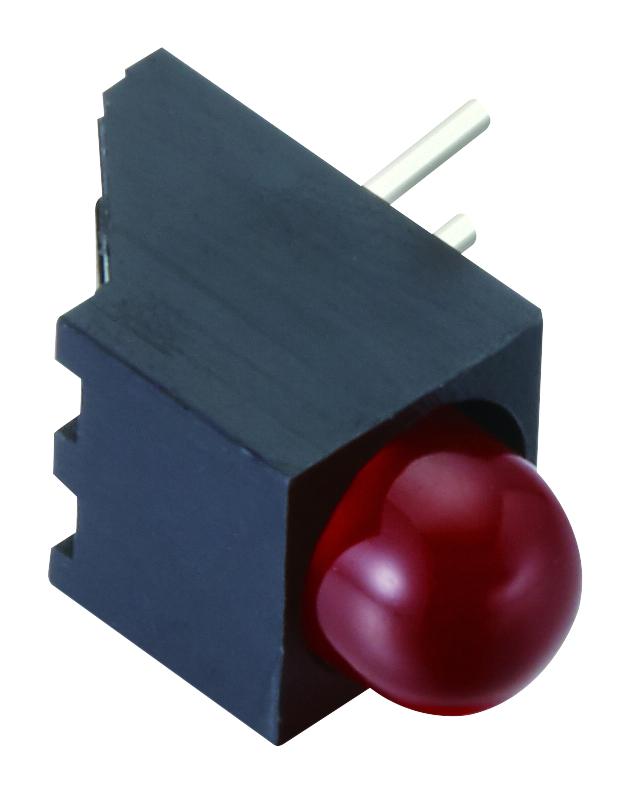

MULTICOMP PRO L383HAD Orange Diffused LED
The 4.7mm Round With Housing multicomp orange diffused LED offers reliable illumination suited for various industrial and electronic applications. Featuring GaAsP on GaP die material and a peak wavelength of 635 nm, it provides a wide viewing angle of 245°. This LED operates at a forward voltage between 1.7V and 2.6V, with a typical luminous intensity of 25 med at 20mA. Designed to withstand temperatures from -40°C to +85°C, it is suitable for robust and durable lighting solutions in industrial environments.
MULTICOMP PRO L383HAD Orange Diffused LED Specifications:
- Die Material: GaAsP on GaP
- Peak Wavelength: 635 nm
- Viewing Angle: 245°
- Lens Colour: Orange Diffused
- Luminous Intensity: 20-32 med at 20mA
- Forward Voltage: 1.7V - 2.6V
- Power Dissipation: up to 85 mW
- Peak Forward Current: 100 mA
- Recommended Operating Current: 20 mA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Reverse Voltage: 5 V
- Reverse Current: 10 µA (at 5V)
- Lead Soldering Temperature: 260°C for 5 sec
- Dimensions: 4.7mm diameter, round housing, tolerance +0.25mm
Buy the Multicomp 4.7mm Round With Housing – Reliable Orange Diffused LED for Industrial Applications
Purchase the multicomp Orange Diffused LED with 4.7mm round housing today. Engineered for reliability and performance, it features a 635 nm wavelength and a wide viewing angle. Designed to operate within -40°C to +85°C, this LED delivers up to 32 med luminous intensity at 20mA, with a forward voltage ranging from 1.7V to 2.6V. Suitable for industrial lighting, indicator panels, and electronic devices, it ensures durable and efficient illumination for demanding applications.
Get multicomp 4.7mm round with housing now—optimized for durability and consistent illumination in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO L383HAD?
You can click on the BUY or RFQ button to purchase L383HAD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part L383HAD?
You can download the L383HAD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of L383HAD?
MULTICOMP PRO
