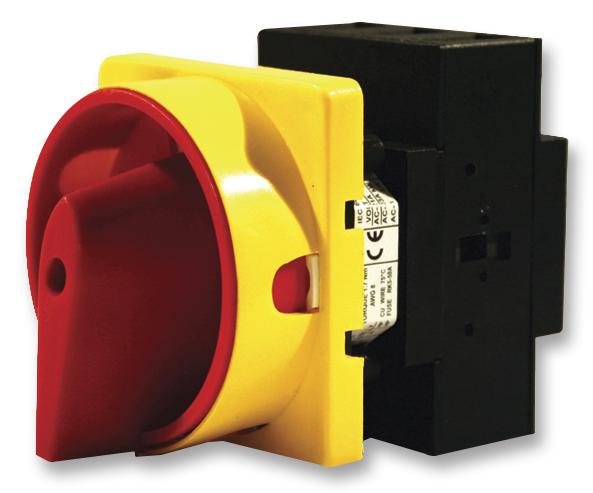

MULTICOMP PRO LBPM253P Switch Disconnector
The enclosed switch disconnector is a panel-mounted, 3-pole device rated at 25A, designed for reliable circuit isolation in industrial applications. It features UL and IEC standards compliance, with a rated operational voltage of up to 690V and a short circuit capacity of 10 kA. Its compact dimensions and sturdy terminal specifications make it ideal for control panels. Suitable for circuits up to 690V, it provides safe disconnection with high short circuit withstand capabilities, ensuring durability and safety in industrial switching operations.
MULTICOMP PRO LBPM253P Switch Disconnector Specifications:
- Rated operational voltage Ue: IEC & EN 690V, UL 600V
- Rated impulse withstand voltage Uimp: 6 kV
- Rated uninterrupted current: 25 A
- Rated operational power AC-23A: 11-30 kW depending on voltage
- UL Power Rating: 3-7.5 HP depending on voltage
- UL Short Circuit Ratings: Fuse rating, class J 45-70A, Short circuit current 10 kA
- Max fuse size (IEC): 63A
- Rated Fused short circuit current: 30 kA
- Terminal Specification: Max 25 mm² wire size, 2.5 mm² min, 10/6 AWG
- Recommended Tightening Torque: 1.7-2 Nm
- Number of Poles: 3
- Dimensions: Panel mount, compact size, suitable for control panels
- Compliance: UL508, IEC 60947-1, 3, CE, SEMKO
- Fuse Rating: Class J 45-70A
- Short Circuit Capacity (IEC): 10 kA
Buy the Multicomp LBPM253P – Reliable Switch Disconnector for Industrial Applications
Purchase the multicomp LBPM253P switch disconnector online now to enhance your control panel reliability. Designed with high short circuit capacity and compliance to UL and IEC standards, this panel-mounted device offers safe circuit disconnection for industrial automation and electrical systems. Its robust construction supports circuits up to 690V, ensuring durability and safety in demanding environments. Simplify installations with its compact design, and enjoy prompt delivery through our online platform for your project needs.
Order your multicomp LBPM253P switch disconnector today and ensure safe, efficient circuit control in your industrial projects.
