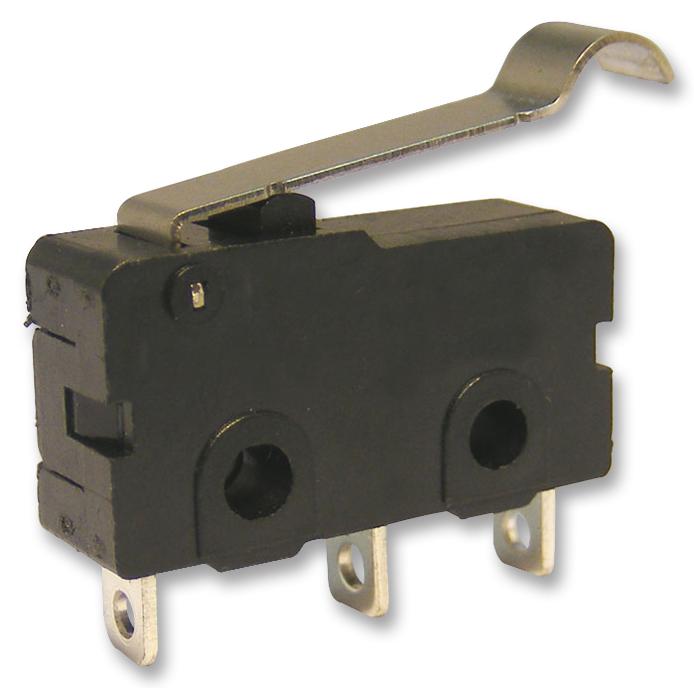

MULTICOMP PRO M140T01AE0509A SPDT Microswitch
The M140T01-AE0509A is a durable and reliable SPDT microswitch designed for industrial applications, featuring a solder terminal connection, simulated roller lever actuator, and a snap-action toggle function. Encased in PBT material, it provides a maximum contact resistance of 500 milliohms, insulation resistance exceeding 100 megaohms at 500V DC, and a withstand voltage of 1000VAC for one minute. With a mechanical life of 50,000 cycles, it supports operating at ambient temperatures from -55°C to +85°C and operates at a frequency of up to 60 operations per minute electrically. Its compact dimensions include a 6.4mm external depth, 19.8mm width, and 10.6mm height, with an operating force of 0.59N and a pre-travel of 4.2mm, making it suitable for precision control and automation systems.
MULTICOMP PRO M140T01AE0509A SPDT Microswitch Specifications:
- Rating: 5A, 125/250V AC, 5(2)A, 125/250V AC (NEMKO/ENEC/CQC)
- Maximum Contact Resistance: 500mΩ
- Insulation Resistance: >100MΩ at 500V DC
- Withstand Voltage: 1000VAC for 1 minute
- Operating Frequency: Mechanical 60 operations/minute, Electrical 6-12 operations/minute
- Ambient Temperature: -55°C to +85°C
- Ambient Humidity: 85% RH
- Electrical Life: 50,000 cycles
- Contact Configuration: SPDT
- Switch Operation: Snap Action, Off-On
- Switch Terminals: Solder
- Contact Resistance: 50mΩ
- Contact Voltage Min: 125VAC
- External Depth: 6.4mm
- External Width: 19.8mm
- Height: 10.6mm
- Operating Force: 0.59N
- Pre-travel: 4.2mm
- Series: M140T01
- Switch Case: PBT (Polybutylene Terephthalate)
Buy the Buy Multicomp Pro SPDT Microswitch Part Number M140T01AE0509A Online
Purchase the Multicomp Pro SPDT microswitch online today and enjoy reliable performance for industrial automation, control systems, and precision applications. This switch features a robust PBT case, high contact resistance, and withstands up to 1000VAC, offering durability and safety in demanding environments. Its compact size, multiple specifications including operating force of 0.59N and pre-travel of 4.2mm, ensure easy integration into various control devices. Order now to benefit from quick delivery and excellent quality assurance for your industrial needs.
Get Multicomp Pro M140T01AE0509A today—built for industrial precision, high reliability, and long-lasting durability.
