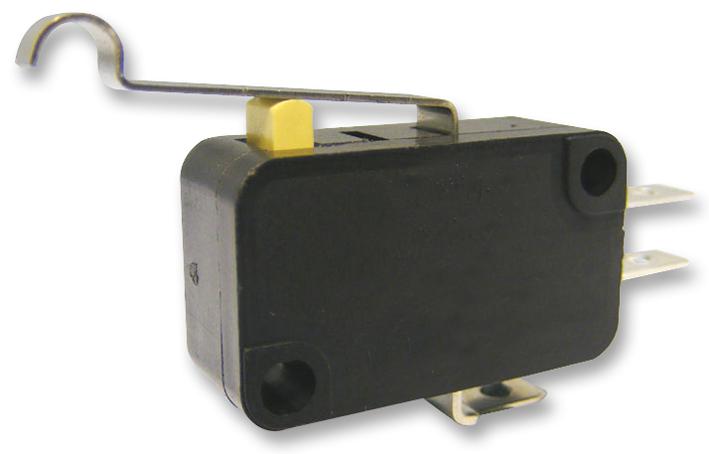

MULTICOMP PRO M141T02AC0301D Industrial Microswitch
This SPDT microswitch with a roller lever offers reliable switching performance for industrial automation and control systems. Rated at 210A and 125/250V AC, it supports high current applications with durable mechanical and electrical life of 1,000,000 and 50,000 cycles respectively. The switch features quick connect and solder terminals, operating at a maximum force of 120gf. Its compact design includes a 9.7mm external depth, 27.8mm width, and 15.8mm height, with an operating temperature range from -55°C to +85°C. Ideal for rugged environments requiring precise, repeatable switching, it complies with international safety standards.
MULTICOMP PRO M141T02AC0301D Industrial Microswitch Specifications:
- Rating: 210A, 125/250V AC
- Maximum Contact Resistance: 500MQ
- Insulation Resistance: >100MQ at 500V DC
- Withstand Voltage: 1,000V AC for 1 minute
- Operating Frequency: Mechanical 60 ops/min, Electrical 6-12 ops/min
- Ambient Temperature: -55°C to +85°C
- Ambient Humidity: 85%RH
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 50,000 cycles at rated load
- Contact Configuration: SPDT
- Switch Type: Snap Action
- Switch Operation: Off-On
- Operating Force Max: 120gf (1.18N)
- Switch Terminals: Quick Connect, Solder
- External Depth: 9.7mm
- External Width: 27.8mm
- Height: 15.8mm
- Pre-travel: 3.5mm
- Switch Case: PBT (Polybutylene Terephthalate)
- Series: M141T02
- Part Number: M141T02AC0301D
Buy the Multicomp Series M141T02 Industrial Microswitch with Roller Lever: M141T02AC0301D
Get the reliable multicomp industrial microswitch now available online. Designed with a durable SPDT configuration and high current rating, it supports rugged industrial environments. Featuring quick connect and solder terminals, it ensures simple installation and long-lasting performance. Capable of withstanding up to 1 million mechanical cycles, this switch is ideal for automation, control panels, and machinery. Enhance your projects with a proven, high-quality microswitch that guarantees dependable operation and precise switching performance in demanding conditions.
Buy multicomp M141T02AC0301D now and experience unmatched reliability and performance in your industrial control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO M141T02AC0301D?
You can click on the BUY or RFQ button to purchase M141T02AC0301D from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part M141T02AC0301D?
You can download the M141T02AC0301D datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of M141T02AC0301D?
MULTICOMP PRO
