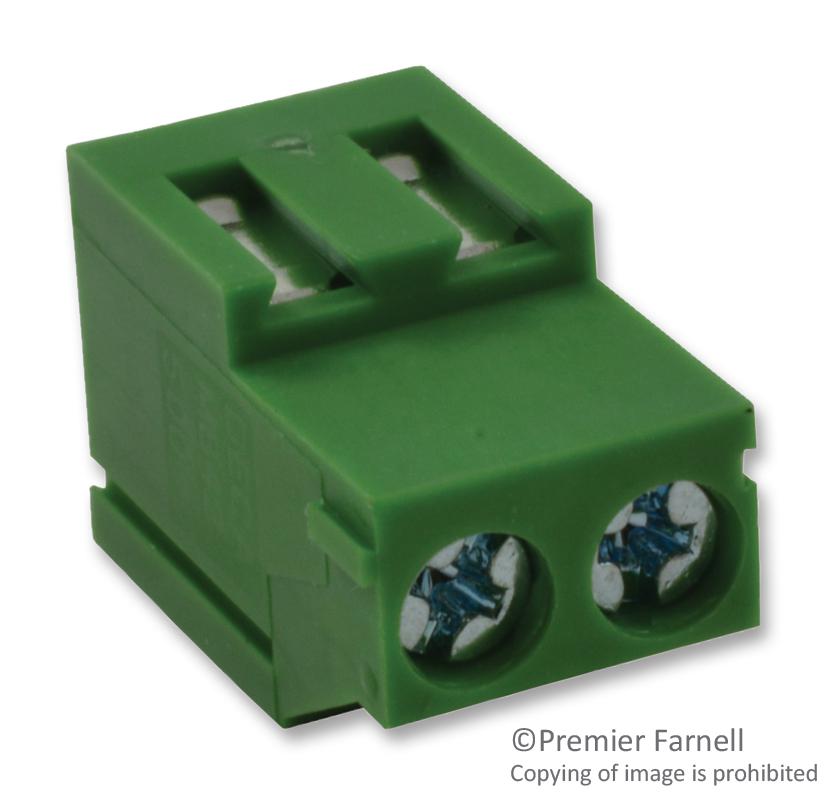

MULTICOMP PRO MB422500MA02 Eurostyle Terminal Block
The MB422-500MA02 is a robust two-position, 27A Eurostyle terminal block designed for wire-to-board connections. Featuring a through-hole, right-angle design, it is ideal for industrial applications. The terminal has tin-plated brass contacts housed in a durable PA66 insulating body, with zinc-plated steel screws and brass cage clamps for secure wire termination. It operates from -40°C to 105°C, with a UL94V-0 flammability rating and insulation resistance exceeding 2000 MΩ at 500V DC. Suitable for various wiring installations requiring reliable, high current performance.
MULTICOMP PRO MB422500MA02 Eurostyle Terminal Block Specifications:
- Pitch: 5.00 mm
- Poles: 2
- Housing Material: PA66
- Contact Material: Brass, Ni Plated
- Screw Material: Steel, Zinc Plated
- Wire Size: 10AWG to 24AWG
- PCB Hole Diameter: 1.5mm
- Tightening Torque, Max.: 6Lb-in
- Operating Temperature: -40°C to +105°C
- Nominal Current: 25A
- Nominal Voltage: 300V
- Insulation Resistance: >2000 MΩ at 500V DC
- Flammability: UL94V-0
Buy the Multicomp Series Eurostyle Wire-to-Board Terminal Block: MB422-500MA02
Order the Multicomp Eurostyle terminal block MB422-500MA02 online today to ensure a secure, high current wiring connection for industrial and electronic projects. This two-position, 27A rated terminal features a through-hole design with a right-angle orientation, making installation straightforward. Its durable PA66 housing, brass contacts, and zinc-plated steel screws guarantee longevity and safety. Suitable for voltage up to 300V and operating in temperatures from -40°C to 105°C, this connector ensures reliable performance in rigorous environments. Buy now for quick delivery and reliability.
Buy Multicomp series Eurostyle wire-to-board terminal block MB422-500MA02 now and experience unmatched reliability and high current performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MB422500MA02?
You can click on the BUY or RFQ button to purchase MB422500MA02 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MB422500MA02?
You can download the MB422500MA02 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MB422500MA02?
MULTICOMP PRO
