MULTICOMP PRO MC000001 PCB Terminal Block
The MC000001 is a 2-way, 2.54mm pitch screwless PCB terminal block featuring tin-plated brass terminals and a green polyamide 66 insulating body. It is designed with a through-hole right-angle configuration and accepts wire gauges up to 20 AWG. The terminal uses a push-in connection for easy wire insertion and supports 10mm strip wires. It offers insulation resistance greater than 2000MΩ and operates within a temperature range from -40°C to +105°C. Ideal for PCB wiring and electrical connections with reliable insulation and easy installation.
MULTICOMP PRO MC000001 PCB Terminal Block Specifications:
- Rating Current: 6 Amperes, 150V AC
- Min. Insulation Withstand Voltage: 2,000V AC
- Insulation Resistance: >2,000MΩ 500V DC
- Operating Temperature: -40°C to +105°C
- Wire Range: 120 to 26 AWG
- Pitch: 2.54mm (0.1 inch)
- Material: Insulating Body Polyamide 66 - Green
- Terminal Material: Brass, Tin Plated
- Lever Material: Polyamide 66
- Cover: Green
- Spring: Stainless Steel
- Dimensions (mm): A: 8.08 (2 pole), 10.62 (3 pole), 13.16 (4 pole), 15.7 (5 pole), 18.24 (6 pole), 23.32 (8 pole), 28.4 (10 pole), 33.48 (12 pole)

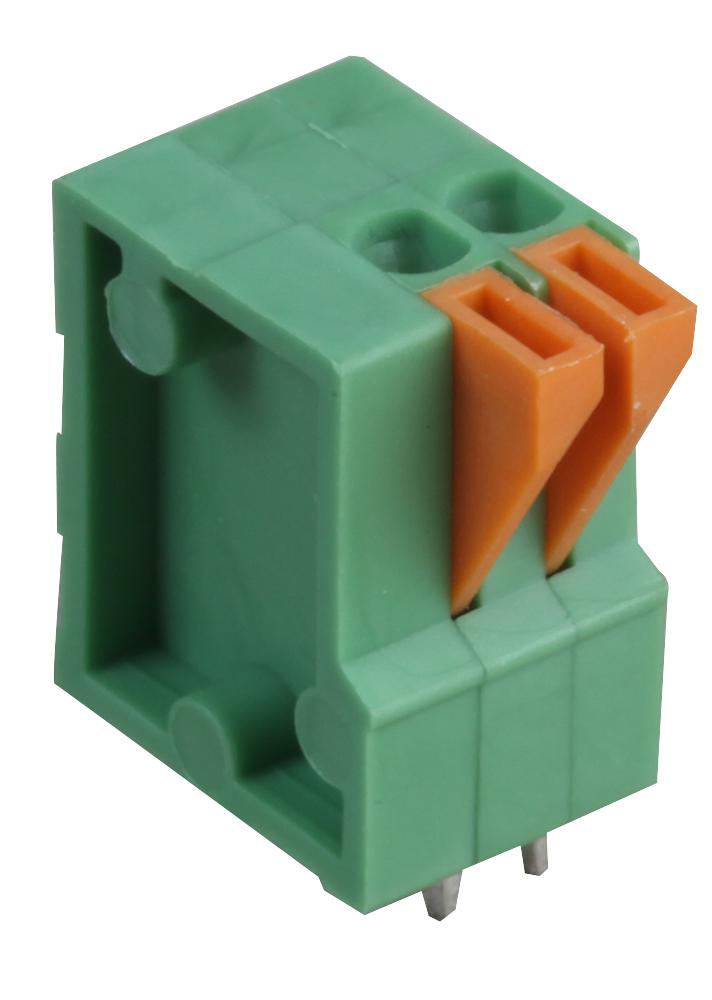

Buy the Buy multicomp PCB Spring Type Terminal Blocks Part Number MC000001 Online
Purchase the multicomp PCB terminal block MC000001 online for easy and reliable wiring connections. Its screwless push-in design simplifies installation, saving time and ensuring secure contact. Suitable for applications requiring minimal space and high insulation resistance, it handles up to 150V AC at 6A. Made with a durable polyamide insulator and brass terminals, it operates efficiently from -40°C to +105°C. Ideal for electrical panel wiring, prototyping, and industrial electronics, ensuring long-lasting, vibration-resistant connections for your projects.
Get multicomp MC000001 today—designed for secure, quick connections in PCB assemblies with reliable insulation and durable construction.
