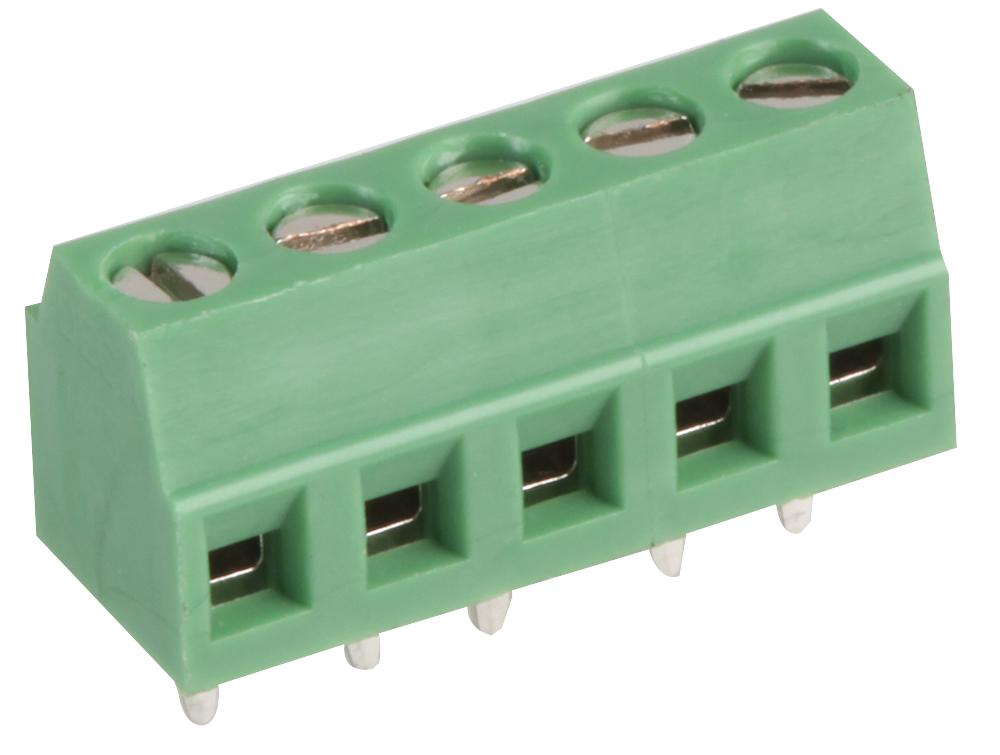

MULTICOMP PRO MC000021 PCB Terminal
This 3.81mm screw PCB terminal is a reliable and durable connection component designed for modular electronic applications. Constructed from high-quality polyamide 66 insulating bodies, with nickel-plated brass cage clamps and tin-plated steel screws, it provides excellent electrical conductivity and corrosion resistance. With a current rating of 10A and withstand voltage of 300V AC, it supports wire ranges from 26 to 20 AWG and operates efficiently within -55°C to +105°C. Its single-mold design ensures secure and stable connections, ideal for industrial wiring and electronic projects.
MULTICOMP PRO MC000021 PCB Terminal Specifications:
- Rating current: 10A
- Min. insulation withstand voltage: 300V AC
- Insulation resistance: > 2,000MQ 500 V DC
- Operating temperature: -55°C to +105°C
- Wire strip length: 4 to 5 mm
- Wire range: 26-20 AWG
- Pitch: 3.81mm (0.15 inch)
- Poles: 2 to 12
- Material: Insulating body Polyamide 66 - Green
- Cage Clamp: Nickel Plated Brass
- Terminal: Tin Plated
- Screw: Steel Nickel Plated
Buy the Buy Multicomp PCB Terminal Part Number MC000021 Online
Purchase the Multicomp PCB Terminal with 3.81mm screw spacing today for secure, efficient electronic wiring. Crafted from durable polyamide, with nickel-plated brass clamps and tin-plated steel screws, it offers excellent electrical performance and corrosion resistance. Suitable for wire ranges from 26 to 20 AWG and rated for 10A/300V AC, this terminal operates from -55°C to +105°C. Its single-mold design ensures stable and reliable connections in industrial and electronic applications. Order now for quick delivery and dependable performance.
Get Multicomp PCB Terminal MC000021 today—designed for reliable connections with high-quality materials and broad wire compatibility.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC000021?
You can click on the BUY or RFQ button to purchase MC000021 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC000021?
You can download the MC000021 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC000021?
MULTICOMP PRO
